Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
SPECIFICATION
Graphics Engine
AMD Radeon™ RX 9060 XT
Model Name
RX9060XT 16G-A
Stream Processor
2048 Units
Engine Clock(STD/Silent)
up to 2620MHz(Game)¹
up to 3230MHz(Boost)²
Bus Standard
PCIE 5.0 x16
Standard Display Connectors

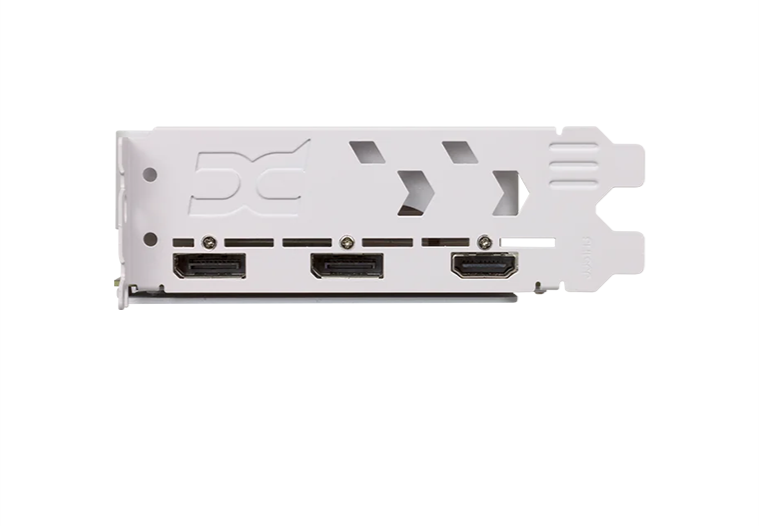

1 x HDMI 2.1b,2 x DisplayPort 2.1a
Feature Support
AMD Eyefinity Technology
Support
AMD Stream Technology
Support
AMD Smart Access Memory
Support
Power Specs + Board Dimensions
Board Dimensions
200mm*100mm*39mm
220mm*120mm*40mm(with bracket)
Minimum System Power requirement (W)
500W
Extension Power Connector
One 8-pin PCI Express Power connector
Remark
¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
The entire information provided herein are for reference only.
PowerColor reserves the right to modify or revise the content at anytime without prior notice.
