Qnap TS-233

Warranty - 3 years
$369.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$369.00 SGD each
Local Shipping
Local Warranty
Secure payments

TS-233


  • Download Datasheet
CPU ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture 64-bit ARM
Graphic Processors Mali-G52
Floating Point Unit Yes
Encryption Engine Yes
Hardware-accelerated Transcoding Yes
Neural Processing Unit (NPU) Yes
System Memory 2 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
Maximum Memory 2 GB on board (non-expandable)
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

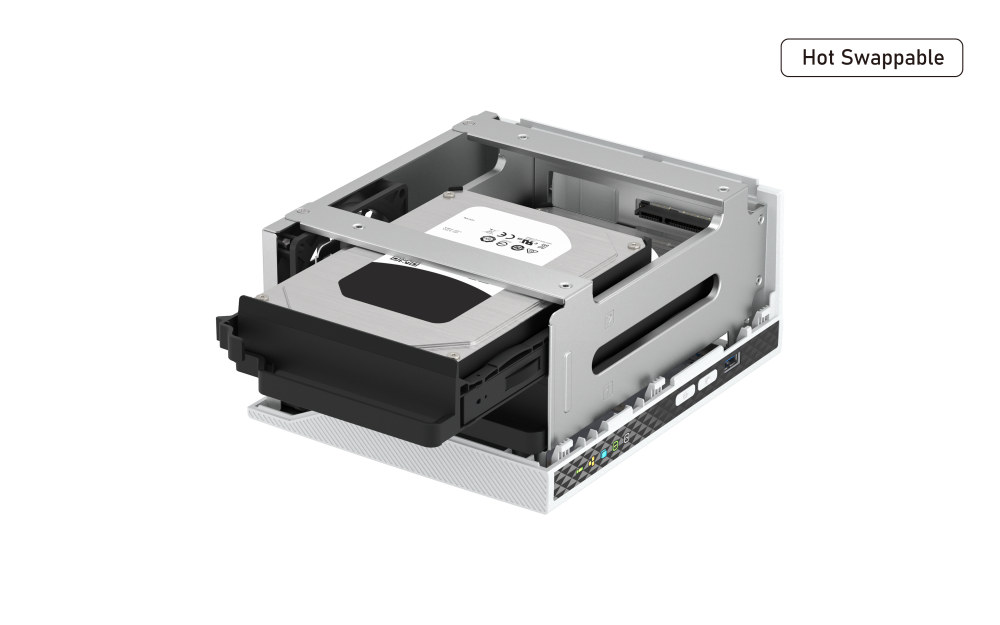

Hot-swappable Yes
Gigabit Ethernet Port (RJ45) 1
Wake on LAN (WOL) Yes
Jumbo Frame Yes
USB 2.0 port 2
USB 3.2 Gen 1 port 1
Form Factor Tower
LED Indicators System Status, LAN, USB, HDD1~2
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 186 × 91.7 × 157.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 1.69 kg
Weight (Gross) 1.89 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Minimum 48W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode 3.43 W
Power Consumption: Operating Mode, Typical 10.81 W
Tested with drives fully populated.
Fan 1 x 80mm, 12VDC
System Warning Buzzer
Standard Warranty 2
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 200



Operating System

QTS 5.2.0

Supported Client Operating Systems
  1. Apple Mac OS 10.10 or later
  2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
  3. IBM AIX 7, Solaris 10 or later UNIX
  4. Microsoft Windows 7, 8, 10 and 11
Show more...
Supported Browsers
  1. Apple Safari (latest version)
  2. Google Chrome (latest version)
  3. Microsoft Edge (latest version)
  4. Mozilla Firefox (latest version)
Supported Languages

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool

Yes

SED Storage Pool

Yes

Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion

Yes

VJBOD / VJBOD Cloud

Yes

iSCSI Service

Yes

Fibre Channel Service

Yes

LUN Type

Thick, Thin

File-based iSCSI LUN

Yes

Block-based iSCSI LUN

Yes

Maximum LUN size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of targets LUN

128

LUN feature
  1. LUN Mapping (LUN can be moved between iSCSI and FC)
  2. LUN Masking
  3. WWPN Aliases Import/Export
  4. FC Port Group
Show more...
Auto Tiering



Requires minimum 2GB memory.

RAID Type
  1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
  2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
  3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
  4. 2-bay: JBOD, Single, RAID 0, 1
RAID Group



To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration

Yes

RAID Expansion (by adding Disk)

Yes

RAID Expansion (by replacing bigger Disks)

Yes

Storage Pool Expansion (by adding RAID Group)

Yes

RAID Hot Spare

Global, Local

RAID Sync/Rebuild/Scrubbing

Yes

Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

Disk, Enclosure Locate

Yes

Disk S.M.A.R.T. Scan

Yes

Disk S.M.A.R.T. Data Migration

Yes

Ironwolf Health Management

Yes

Secure Erase

Yes

SSD Trim

Yes

SSD Life Estimation

Yes

Disk Roaming

Yes

Disk Standby

Yes

Volume Snapshot

Yes

LUN Snapshot

Yes

Maximum Snapshot (Per System)

Check maximum number of snapshots of your NAS

Maximum Snapshot (Per Volume / LUN)

Check maximum number of snapshots of your NAS

Minimum Snapshot Interval

5 minutes

Snapshot Retention Policy

Yes

Self-serve Snapshot Recovery

Yes

Application Consisted Snapshot

Yes

Snapshot Full Clone

Yes

Snapshot Replica / Vault

Yes

SSD profiling tool

Yes

External Device Management

Yes

Mount Smart Phone (MTP)

Yes

External RAID Device (QNAP so on) Management (External Device Mode)

Yes

External RAID Device (QNAP so on) Management (NAS Mode)

Yes

File Server
  1. File sharing across Windows, Mac, and Linux/UNIX
  2. Microsoft networking (CIFS/SMB)
  3. Apple networking (AFP)
  4. NFS version 3/4 services
FTP Server
  1. QuFTP
  2. FTP, SFTP and TFTP protocols
  3. FTP over SSL/TLS (explicit FTPS)
  4. FXP support
Maximum FTP connection

1024

File Station (Web)

Yes

Object Storage

Yes

Local user account

4,096

Local group account

512

Domain user/group account

200,000

Domain Security

Yes

Domain Controller

Yes

Shared folder permission

Yes

Advanced folder permission

, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL

, (CIFS/SMB)

User quota

Yes

Group quota

Yes

Folder quota

, (Snapshot shared folder)

Home folder

Yes

Resource Monitor

Yes

SNMP

V2, V3

Network recycle bin
  1. Recover files deleted using AFP, CIFS/SMB, and File Station
  2. Automatic cleanup and file type filter
System Log & Notification Center

Log recording: 3,000 event per second

Smart Fan

Yes

Schedule on/off

Yes

Internet protocol

IPv4, IPv6

Virtual Switch

Yes

Port trunking

, (7 modes)

VLAN

Yes

DHCP Server

Yes

DDNS (Dynamic Domain Name Service)

Yes

Network access protection with auto-blocking

SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

Security Counselor

Yes

Malware Remover

Yes

AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP

Yes

2-step verification

Yes

Allow/Deny List

Yes

Access Protection

Yes

Service binding

Yes

Firewall

Yes

vSphere Web Client Plug-in

Yes

VMware vSphere VAAI for iSCSI

Yes

VMware vSphere VAAI for NAS

Yes

Windows ODX

Yes

Windows/VMware Snapshot Agent

Yes

HTTP/HTTPS Connections

TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection

Yes

Supports Virtual Hosts

32

Qsync



Note: At least 1 GB RAM is required.

[Qsync] Management Mode

User customization, Central

[Qsync] Qsync client supported platforms

Windows, macOS, Ubuntu, Android, and iOS

[Qsync] Maximum number of version control

64

HybridMount



Note: At least 1 GB RAM is required.

[HybridMount] File Cloud Gateway

Concurrent Connections = 20 Upload & 20 Download

[HybridMount] Network Drive Mount

Yes

[HybridMount] Free cloud gateway sessions

2

HBS (Hybrid Backup Sync)



Note: At least 1 GB RAM is required.

[HBS (Hybrid Backup Sync)] NAS to NAS backup

Yes

[HBS (Hybrid Backup Sync)] Cloud Backup

Yes

[HBS (Hybrid Backup Sync)] Cloud Sync

Yes

[HBS (Hybrid Backup Sync)] 2-way and Active Sync

Yes

[HBS (Hybrid Backup Sync)] Apple Time Machine Backup

Yes

[HBS (Hybrid Backup Sync)] External drive backup

Yes

[HBS (Hybrid Backup Sync)] Maximum number of backup job

400

Qsirch



Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory

[Qsirch] Previews

Photos, music, videos, PDFs, Gmail, and others

[Qsirch] Integrate Mac Finder

Yes

[Qsirch] Advanced picture search

Yes

[Qsirch] Search filters

Yes

QuMagie



Note: At least 1 GB RAM is required.

[QuMagie] Browse photos

Yes

[QuMagie] Virtual and smart albums

Yes

[QuMagie] AI-assisted photo management

People, things, places, and others

Antivirus (free)

Yes

QVPN Service



Note: At least 1 GB RAM is required.

[QVPN Service] Remote Access

PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)

[QVPN Service] Supportedd utility and mobile app

Windows, macOS, iOS, and Android

[QVPN Service] Supported maximum clients

100

LDAP Server

Yes

RADIUS

Yes

SQL server

Yes

License Center

Yes

Multimedia Console

Yes

Photo Station

Yes

Music Station

Yes

Video Station

Yes

Download Station

Yes

Notes Station

Yes

Qfiling

Yes

Media Streaming add-on

Yes

QmailAgent

Yes

QuWAN

Yes

DA Driver Analyzer

Yes

Q'center



Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

Q'center Server

Yes

Q'center Agent

Yes

Connect to Q'center

Yes

Container Station



Note: At least 1 GB RAM is required.

[Container Station] Supported type

LXC/LXD and Docker

Note: LXD has been supported after Container Station 2.4

[Container Station] Docker Hub Registry

Yes

[Container Station] Container importing and exporting

Yes

[Container Station] Console mode

Yes

QVR Elite



Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Elite] Recording Technique

Standard MP4 file based

[QVR Elite] License Type

Subscription-based

[QVR Elite] User-defined trigger events

Yes

[QVR Elite] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Elite] QVR Pro Client (Mobile)

Android and iOS

[QVR Elite] Recording camera streams

H.264

[QVR Elite] Free built-in camera channels

2

QVR Pro Client

Yes

[QVR Pro Client] Dynamic View Layout

Yes

[QVR Pro Client] Windows

Yes

[QVR Pro Client] Mac

Yes

[QVR Pro Client] HybridDesktop

Yes

[QVR Pro Client] iOS

Yes

[QVR Pro Client] Android

Yes

QVR Human

Yes

QVR Face



The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/

QVR DoorAccess

Yes
