SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
SEASONIC FOCUS GX 750 W
1/ 4
Home / SEASONIC FOCUS GX 750 W

SEASONIC FOCUS GX 750 W

Warranty - 10 years
Save $20.00 SGD
$179.00 SGD
$199.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$179.00 SGD each
Local Shipping
Local Warranty
Secure payments

FOCUS GX

The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

  • 80PLUS-Gold

    80 PLUS® Gold Certified

    The FOCUS GX Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

  • 10 Years

    Warranty

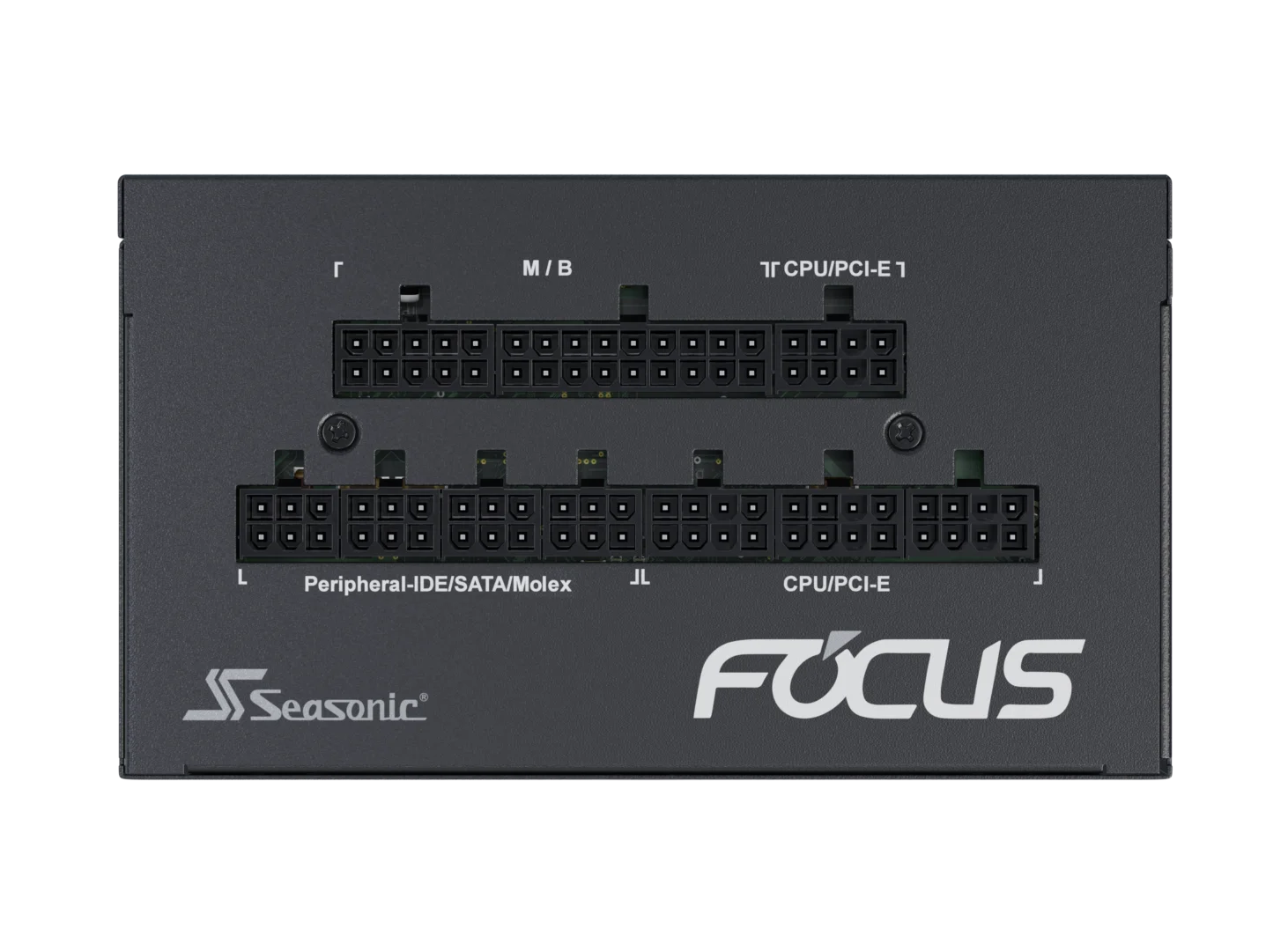

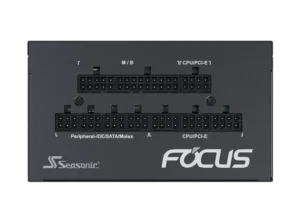

  • FOCUS-PX-GX-750-650-550-connector-leveled

    Fully Modular

    Cabling
  • FOCUS-PX-GX-vertical

    Dimensions

    140 mm (L) x 150 mm (W) x 86 mm (H)

  • ATX 12V

    ATX Specifications

FOCUS GX-850 Unboxing

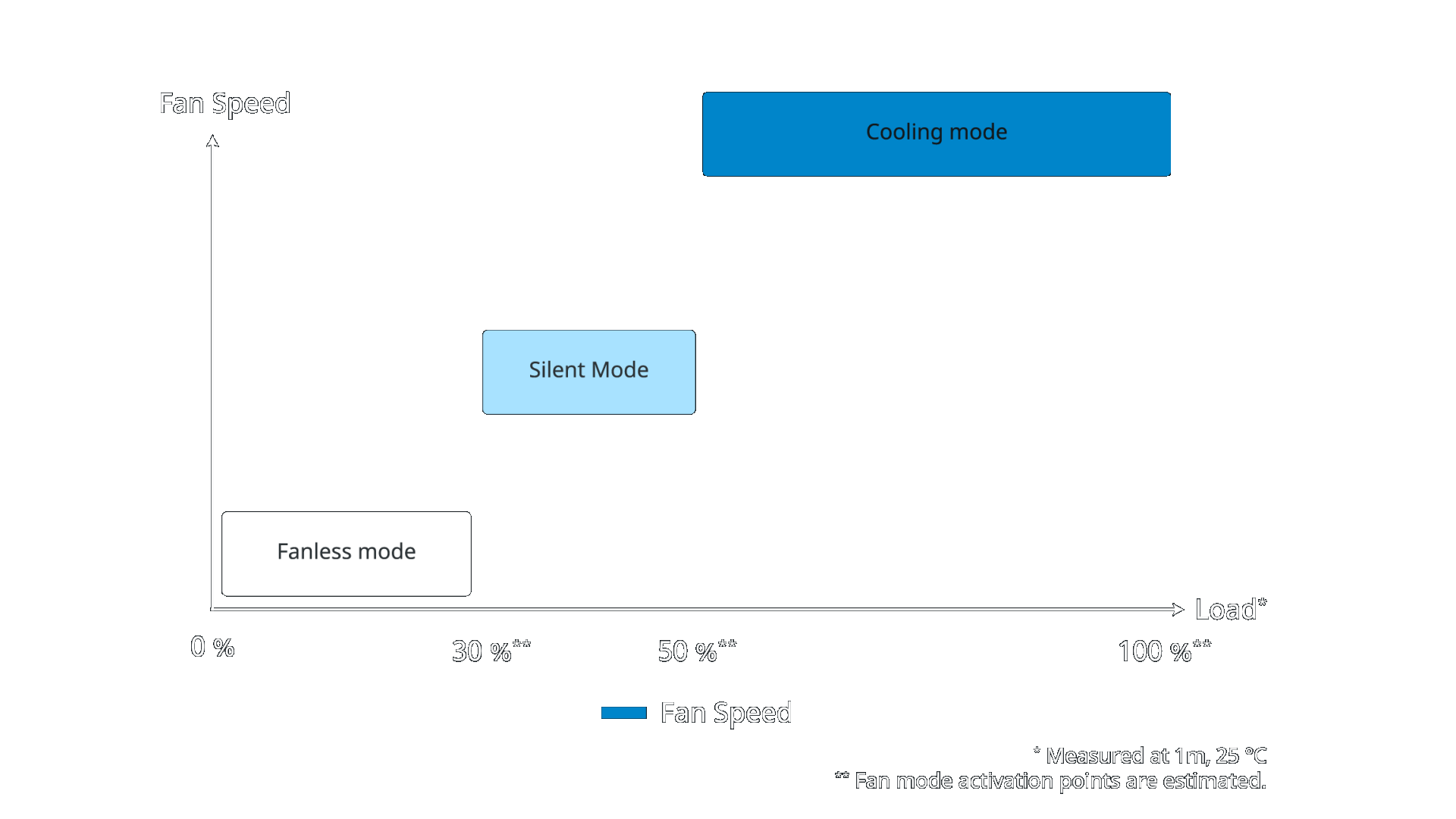

S3FC - Fanless until 30 % load

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

hybrid-silent-fan-control


Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

fdb-fan
PSU-fan-spin-2PSU-fan-spin-1
  • When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
  • As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

FOCUS Hybrid Fan Control Button Explained



Specifications

1000 W
850 W
750 W
650 W
550 W
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor ATX/EPS
Dimensions 140 × 150 × 86 mm
Fan Information Fan Size 120 mm
Fan Control S3FC (including Fanless Mode)
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input 100 V - 240 V
10 - 5 A
50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 62 A 0.3 A 3 A
  100 W 744 W 3.6 W 15 W
  Total continuous power 750 W
