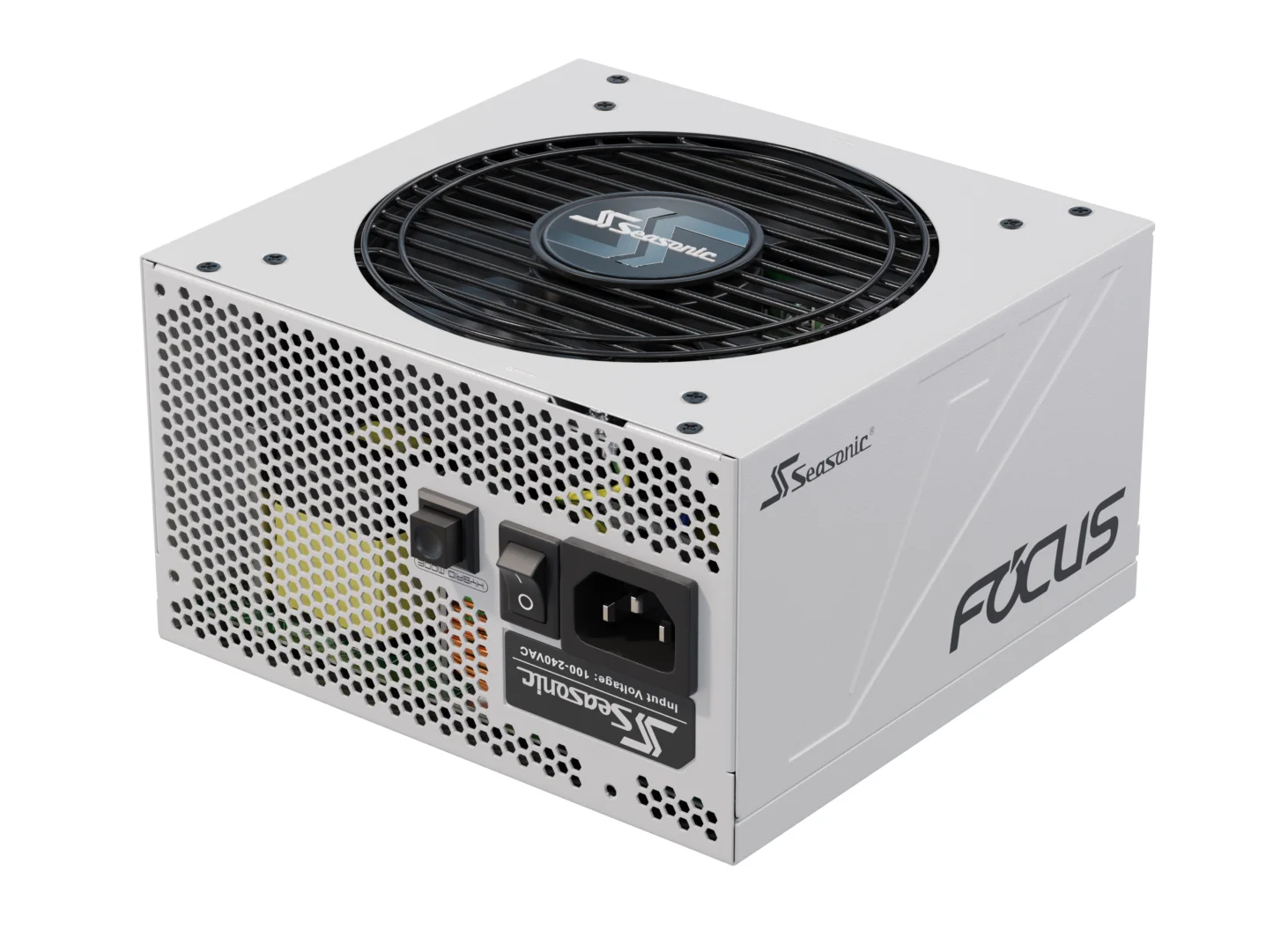

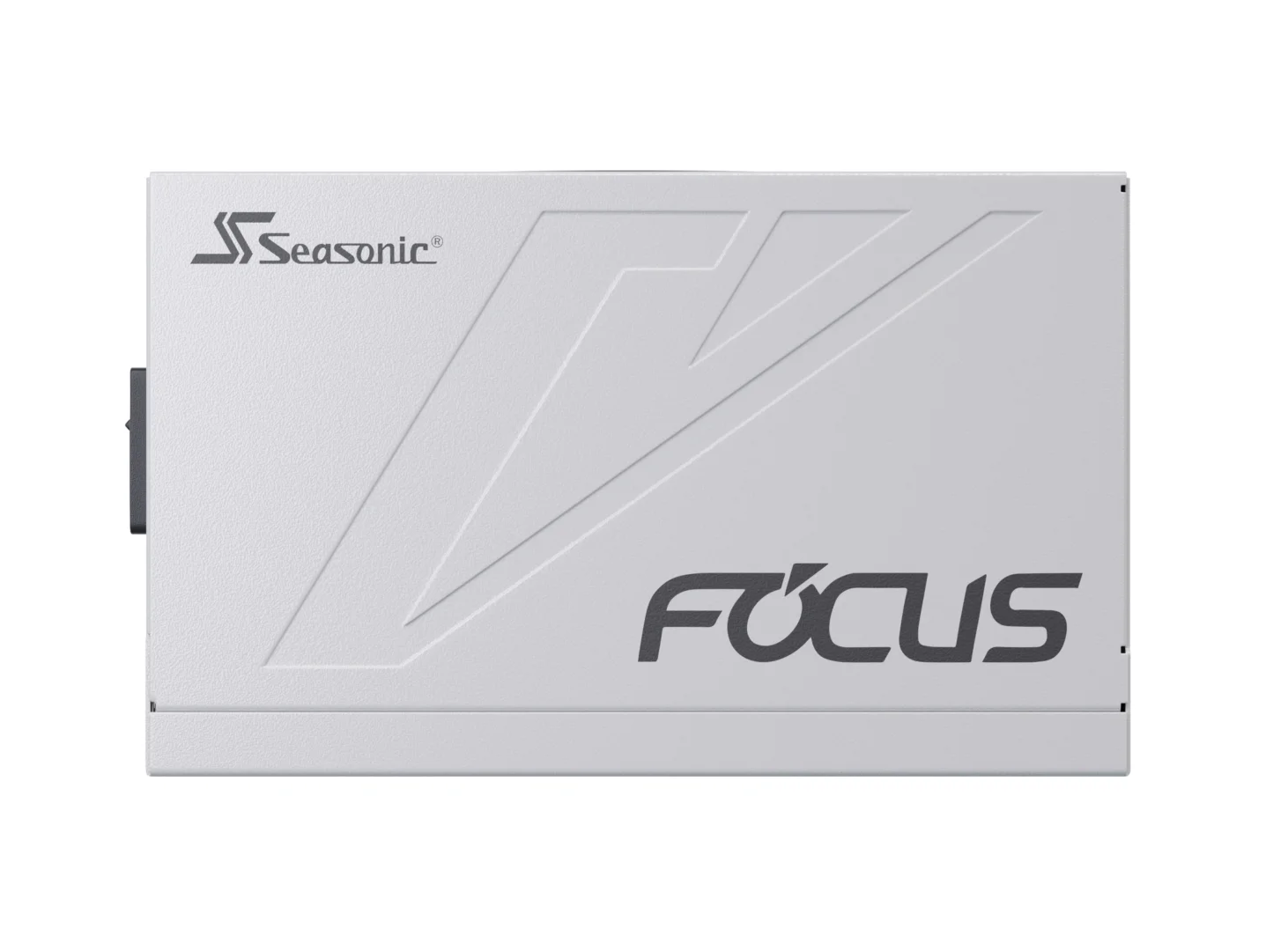

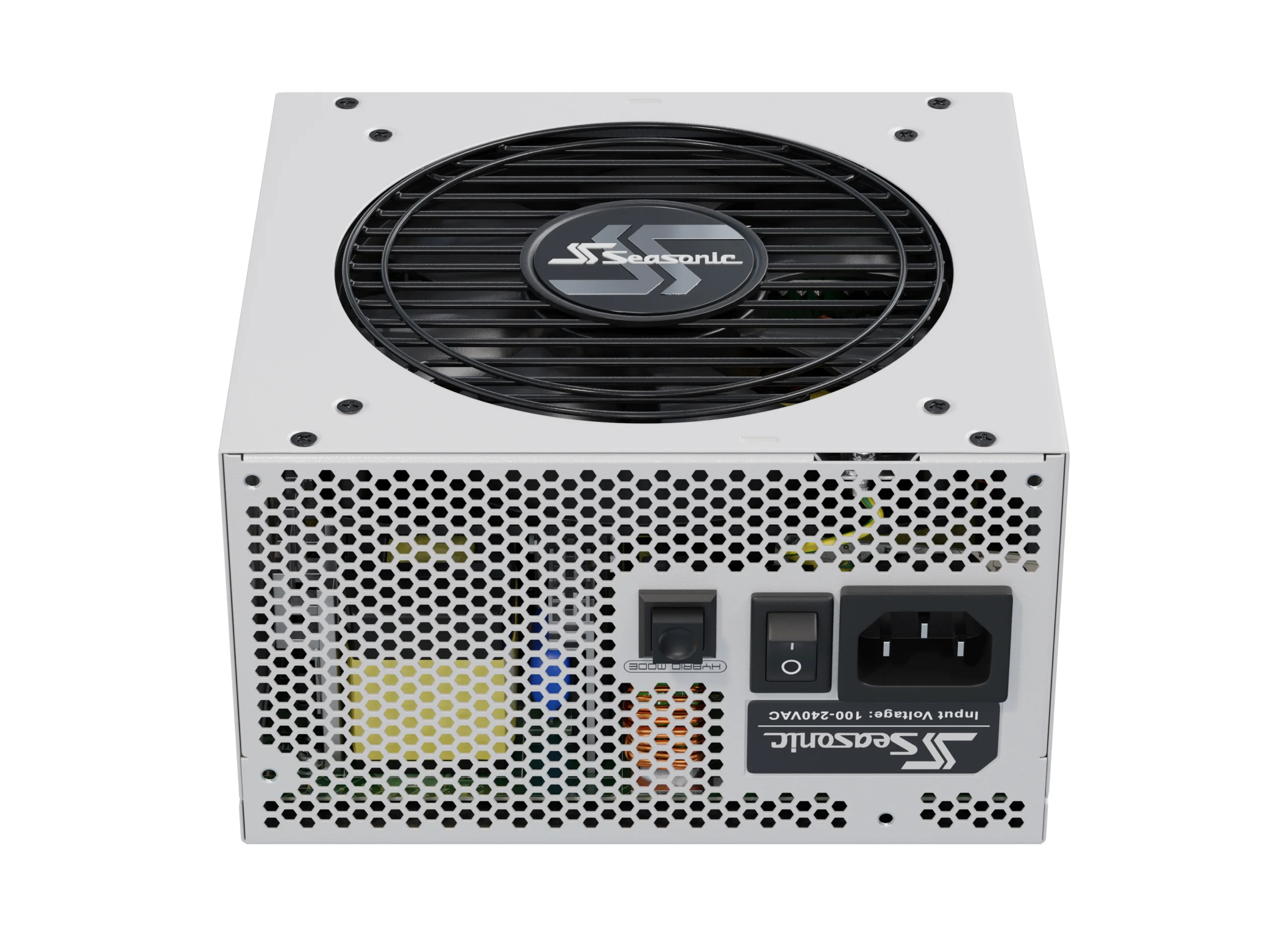

SEASONIC FOCUS GX 1000 WHITE EDITION

Name: SEASONIC FOCUS GX 1000 WHITE EDITION
Brand: Seasonic
SKU: 18074926585546012604821950
Price: 315 SGD
Availability: InStock

Warranty - 10 years

$315.00 SGD

(tax included)

Quantity

Only 1 left

Local Shipping

Local Warranty

Secure Payment

Please Whatsapp +65 85004522 first for stock availability before making payment and checkout

FOCUS GX WHITE EDITION

FOCUS GX White

The newly upgraded FOCUS GX series is the successor to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers made improvements to the popular series, such as removing the inline capacitors on the supplied cables. Besides the slight change in the series naming, the PSU housing and packaging were also updated to align with the concept of the OneSeasonic Initiative. Lastly, it is now available in a beautiful white finish.

The FOCUS GX Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

80 PLUS^® Gold Certified
Warranty

10 Years
Cabling

Fully Modular
140 mm (L) x 150 mm (W) x 86 mm (H)

Dimensions
ATX Specifications

ATX 12V

FOCUS GX 1000 White Edition Unboxing

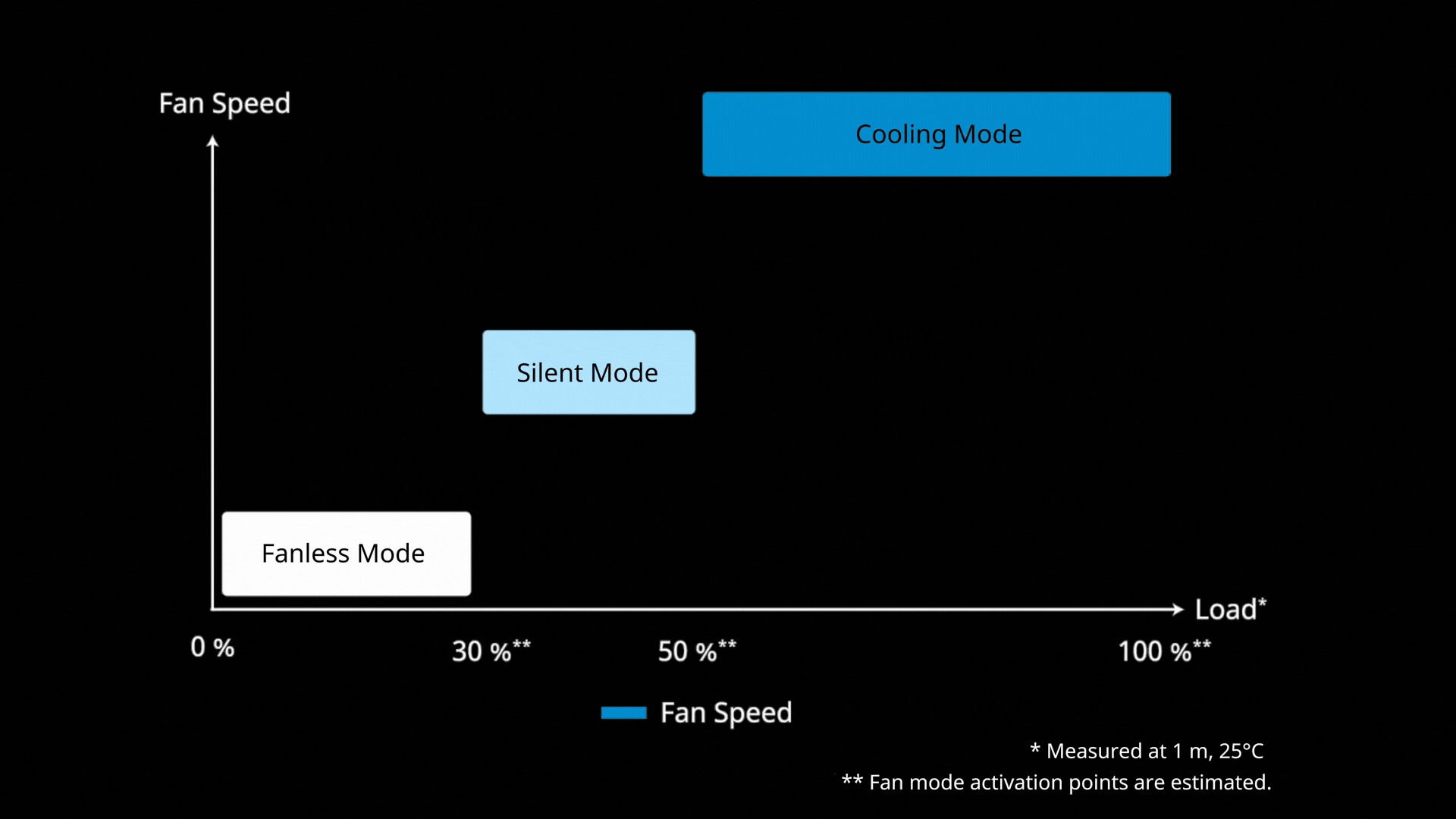

Hybrid Silent Fan Control – Fanless up to about 30 % load

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal balance between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Specifications

Technical Specifications
80PLUS^®		Gold
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		ATX/EPS
Dimensions		140 × 150 × 86 mm
Fan Information	Fan Size	120 mm
	Fan Control	S3FC (including Fanless Mode)
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Electrical Features	Operating Temperature	0 - 40 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	100 V - 240 V
	13 - 6.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	83 A	0.3 A	3 A
		125 W		996 W	3.6 W	15 W
	Total continuous power	1000 W

Cables

610 mm

MB (24/20 pins)

1 connector

1 cable

650 mm

CPU (8/4 pins)

1 connector

2 cables

750 mm

PCIe (8/6 pins)

2 connectors

3 cables

810 mm

SATA

4 connectors

1 cable

860 mm

SATA

4 connectors

1 cable

450 mm

SATA

2 connectors

1 cable

690 mm

Molex

3 connectors

1 cable

470 mm

Molex

2 connectors

1 cable

300 mm

Molex to SATA 3.3 Adapter

2 connectors

1 cable
