SEASONIC PRIME TX ATX 3.0 1600W

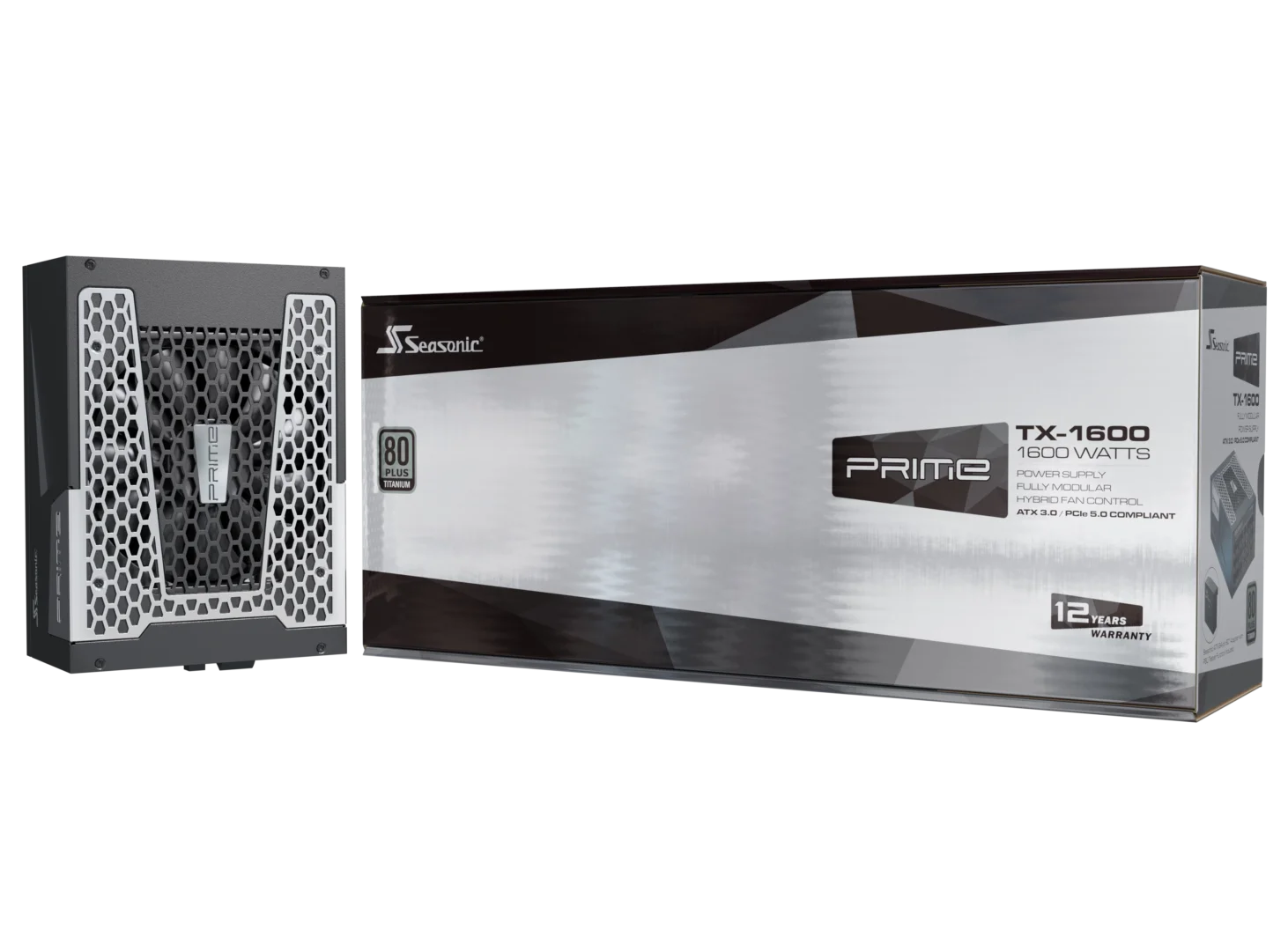

SEASONIC PRIME TX-1600 - 1600W, TITANIUM, MODULAR, ATX 3.0 Warranty - 12 years
$879.00 SGD
$0.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$879.00 SGD each
Local Shipping
Local Warranty
Secure payments

PRIME TX ATX 3.0

Power. Performance. PRIME.

1600 W

PRIME TX ATX 3.0

The Seasonic PRIME TX ATX 3.0 Series is built on top of all the great features of PRIME TX platform with added ATX 3.0 and PCIe 5.0 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12VHPWR connectors, Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market.

  • 80PLUS-Titanium
    The PRIME TX ATX 3.0 Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

    80 PLUS® Titanium Certified

  • Warranty

    12 Years

  • ATX3-PRIME-TX-1600-PX-1600-connector-plate-leveled
    Cabling

    Fully Modular

  • ATX3-PRIME-TX-1600-1300-PX-1600-vertical
    210 mm (L) x 150 mm (W) x 86 mm (H)

    Dimensions

  • ATX Specifications

    ATX 3.0 & PCIe 5.0

Cybenetics - PRIME TX-1600 ATX 3.0
Cybenetics-efficiency-titaniumCybenetics-noise-a
Cybenetics - PRIME TX-1300 ATX 3.0
Cybenetics-efficiency-titaniumCybenetics-noise-a-plus-plus

PRIME TX-1600 ATX 3.0 Unboxing


PRIME TX ATX 3.0

PRIME TX ATX 3.0, 1600W

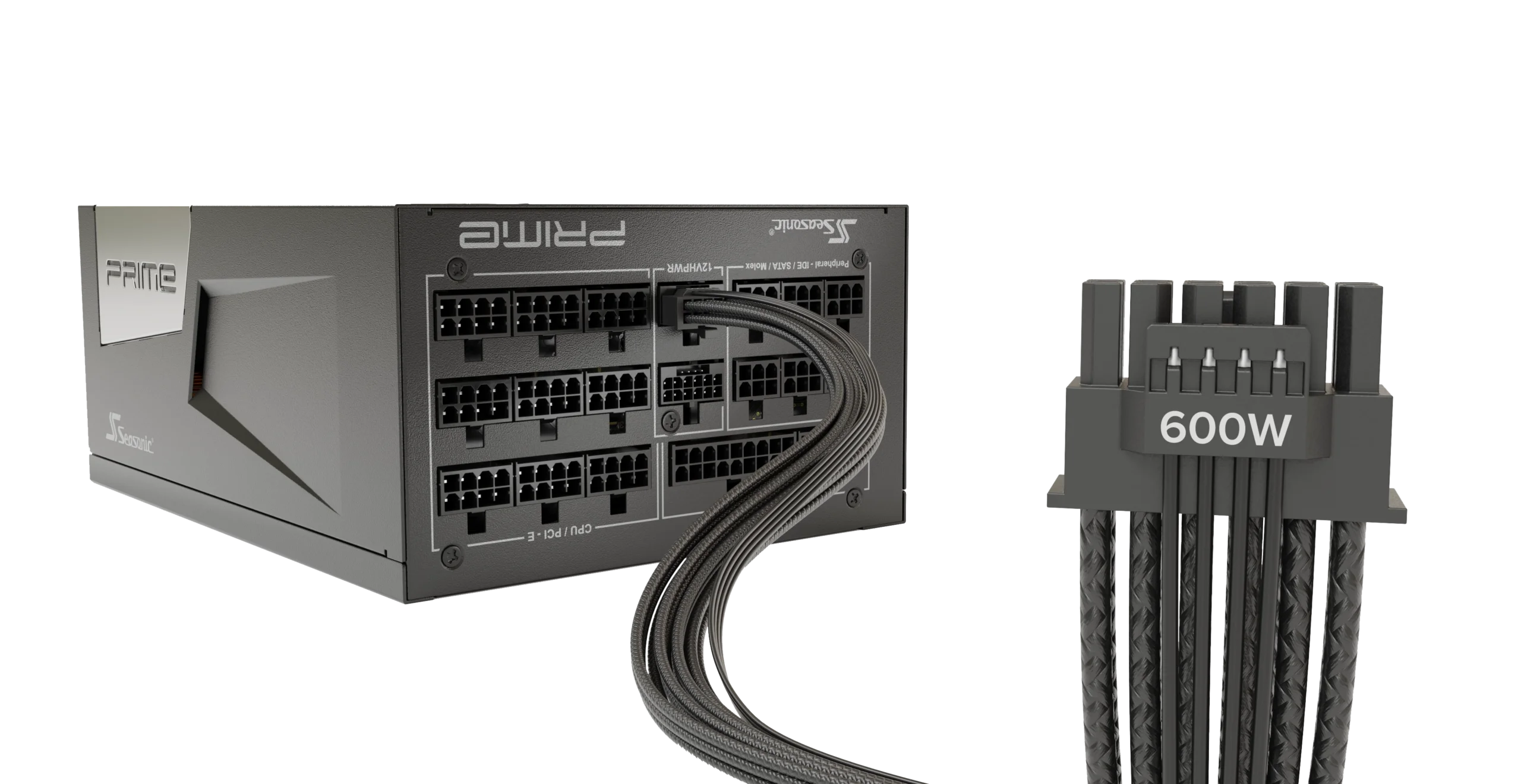

ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

Seasonic’s latest PRIME ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.

ATX3-PRIME-TX-PX-12VHPWR

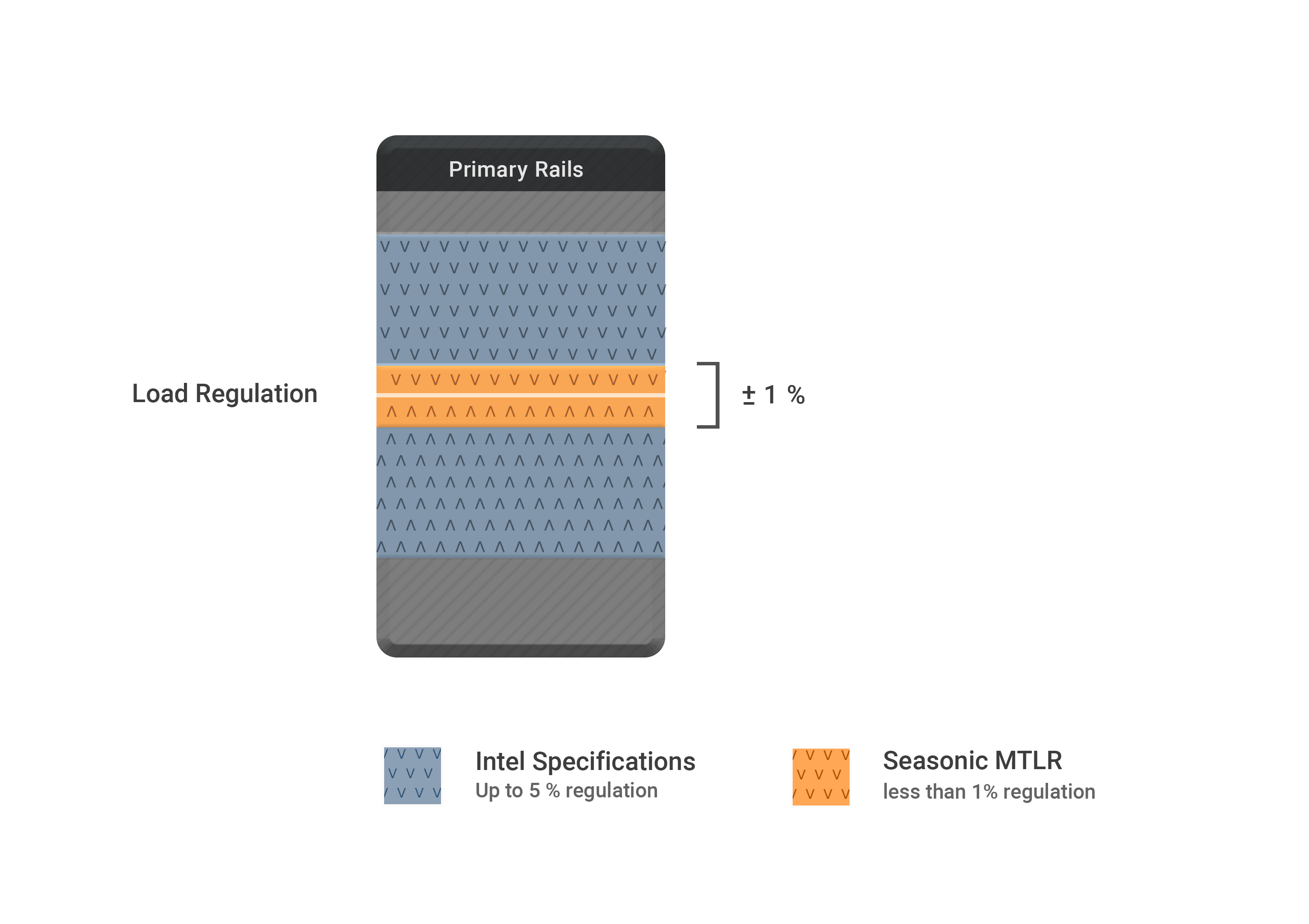

Micro Tolerance Load Regulation

Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Micro Tolerance Load RegulationIntel Specifications
Compare MTLR 01b

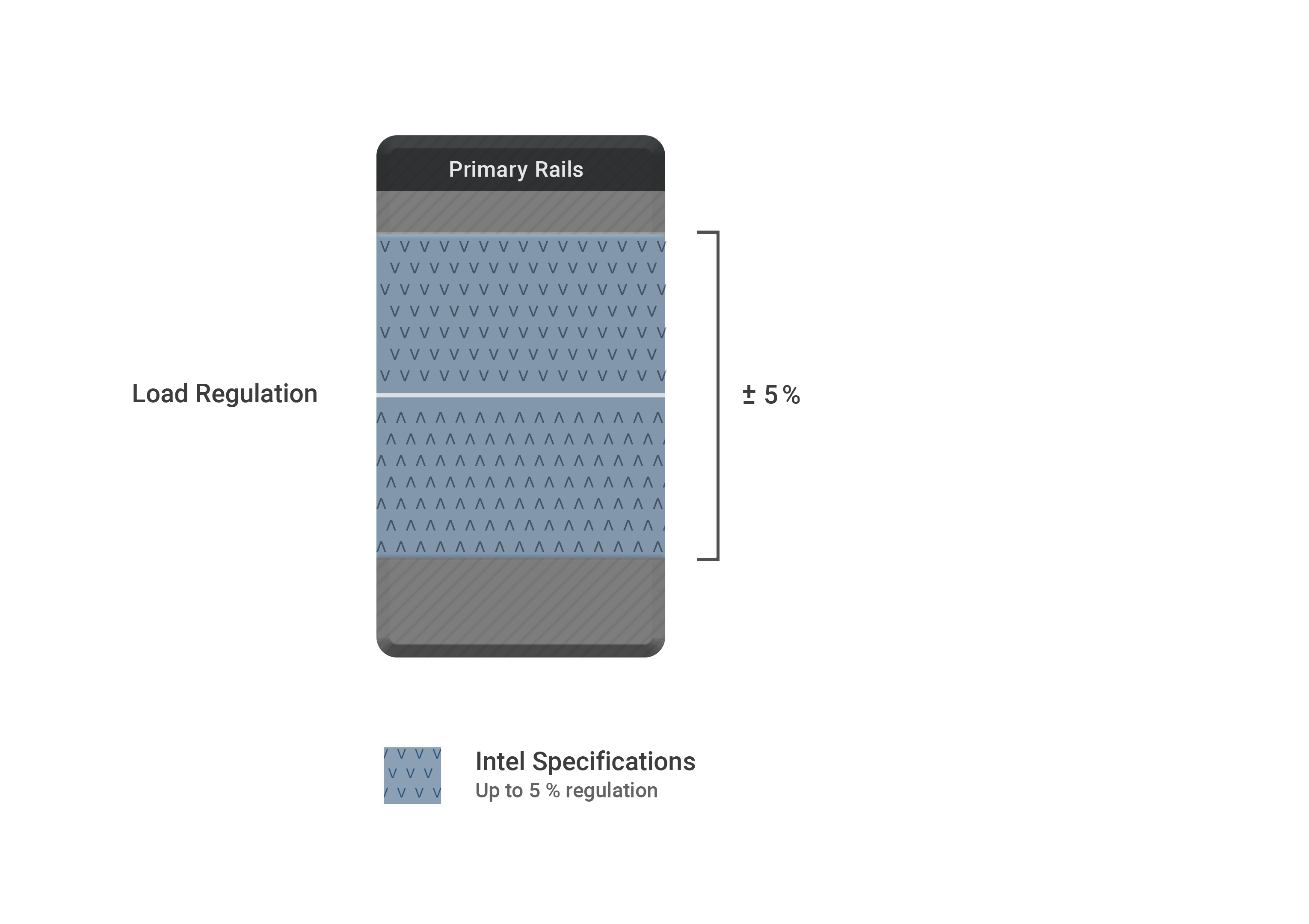

Compare Intel 01

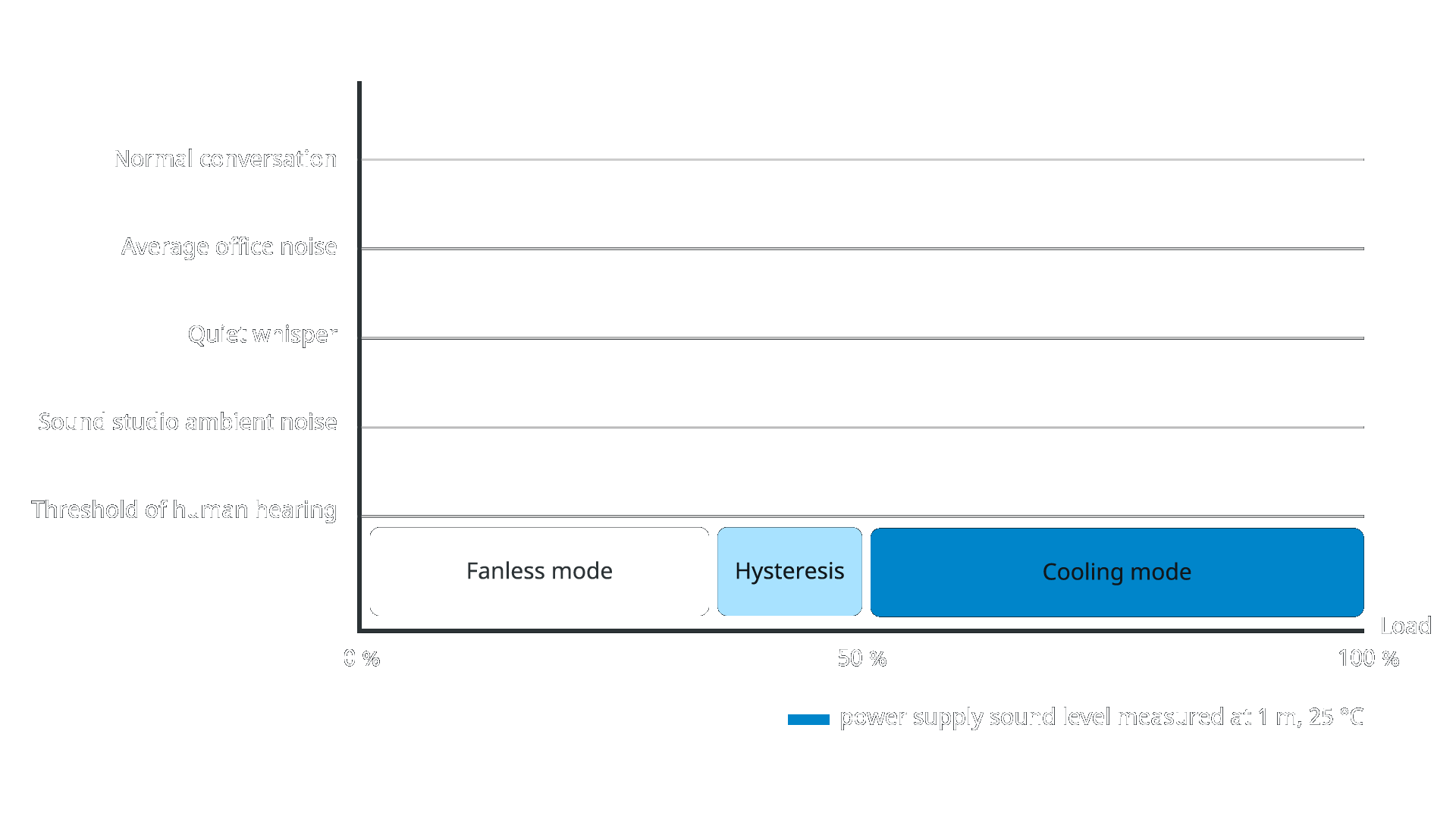

Digital Hybrid Fan Control

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.

20db-sound-level
  • arcticons_sound-amplifierReduced noise without increase in temperature
  • fanExtended fan life due to the reduced number of fan rotations
  • material-symbols-light_heat-pump-balance-outlineOptimized heat dissipation at all times
  • codepenUnsurpassed silent performance in Fanless Mode

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

fdb-fan
PSU-fan-spin-2PSU-fan-spin-1
  • When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
  • As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Specifications

1600 W
1300 W
Technical Specifications
80PLUS® Titanium
Cybenetics Efficiency Level Titanium
Cybenetics Noise Level Lambda A
Form Factor ATX/EPS
Dimensions 210 × 150 × 86 mm
Fan Information Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input 100 V - 240 V
15 - 10 A
50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 133.3 A 0.5 A 3 A
  125 W 1600 W 6 W 15 W
  Total continuous power 1600 W 115-240Vac, 1300 W 100-240 Vac
