Home / SEASONIC VERTEX GX 1200W

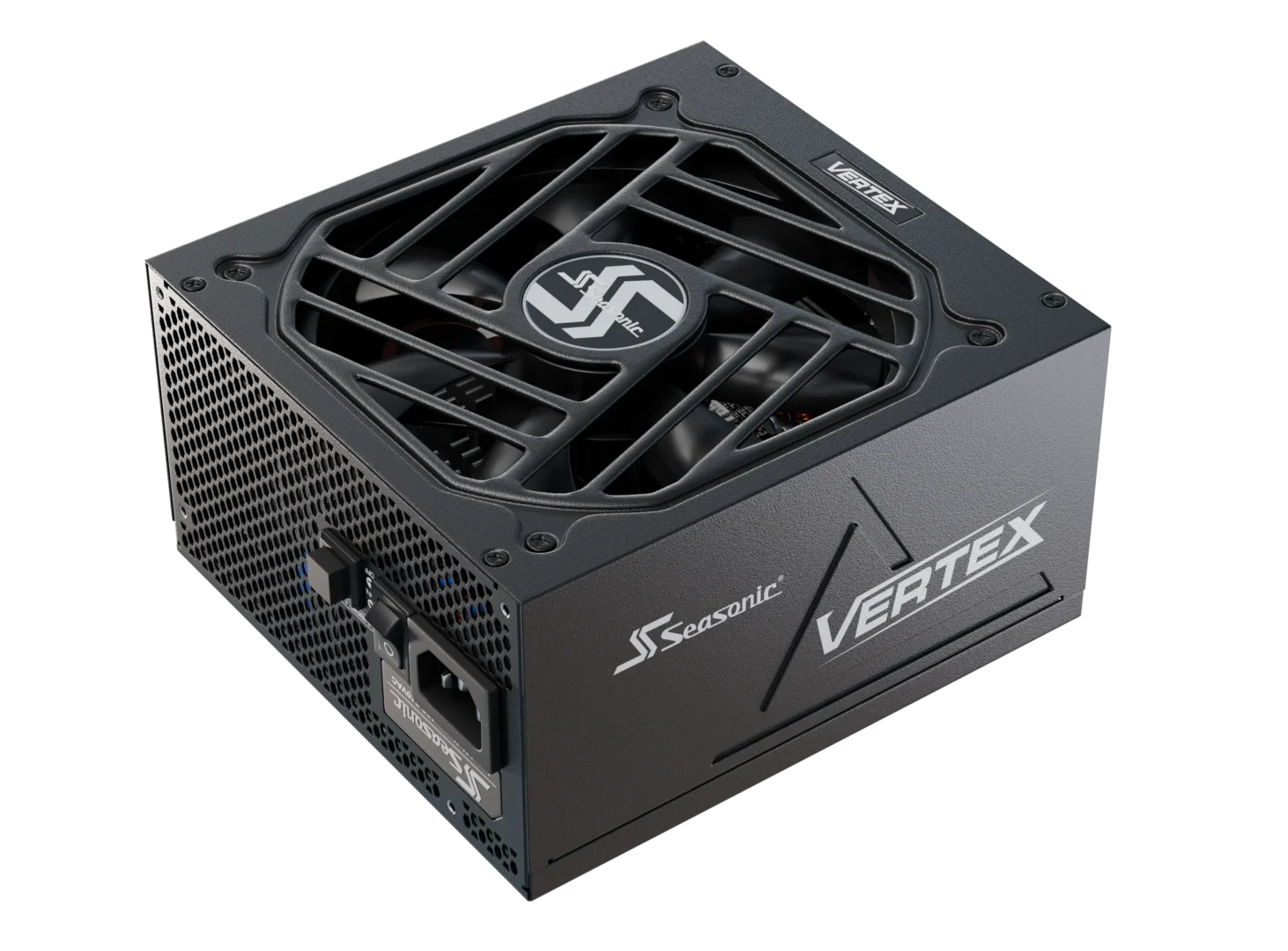

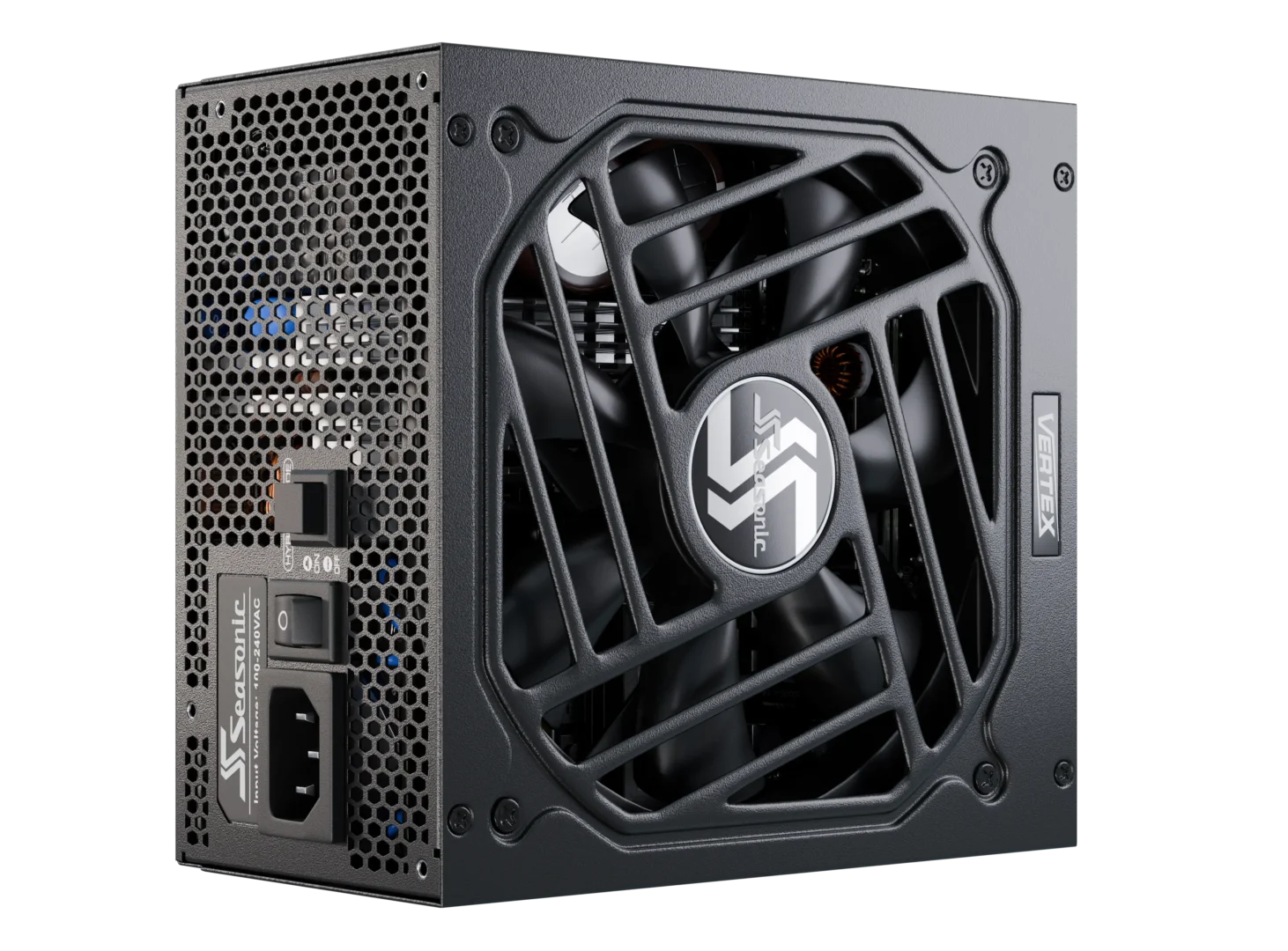

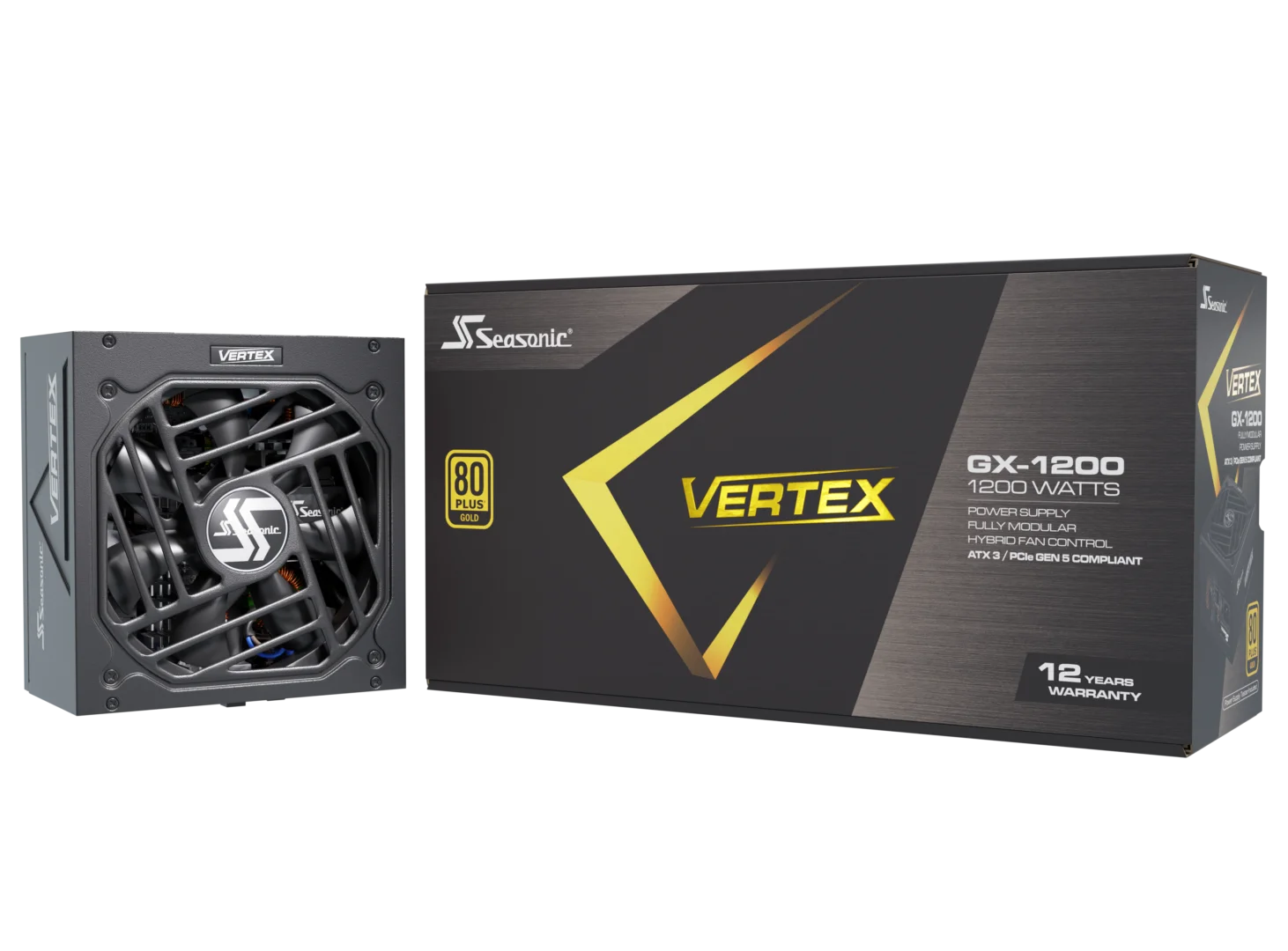

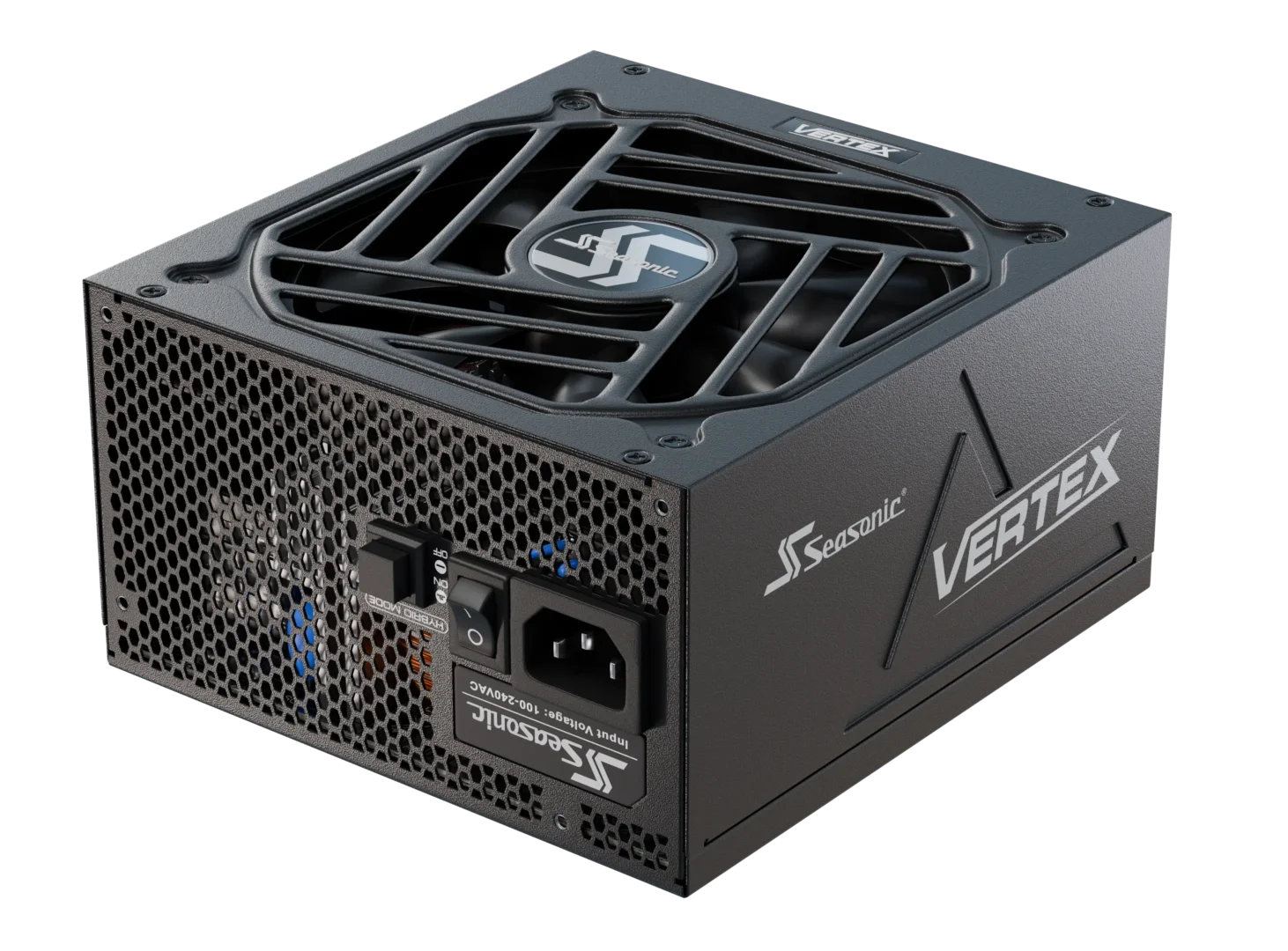

SEASONIC VERTEX GX 1200W

SEASONIC VERTEX GX-1200 - 1200W, GOLD, MODULAR, ATX 3.0 Warranty - 10 years
Save $34.00 SGD
$375.00 SGD
$409.00 SGD
(tax included)
Quantity
Only 1 left
Volume Pricing
Quantity
Price
1+
$375.00 SGD each
Local Shipping
Local Warranty
Secure payments

VERTEX GX

1200 W

VERTEX GX

The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in Gold level of efficiency, with all the best features you can expect from a Seasonic power supply:

  • Fully compatible with ATX 3.1 and PCIe 5.1 standards.
  • Full modularity for the best cable management options.
  • Added 12V-2×6 cable to comply with the new graphic cards.
  • 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation.
  • Seasonic Hybrid Silent Fan Control for optimal cooling.
  • Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP.
  • 12 years warranty – our commitment to high quality.



Update July 2024: The Seasonic VERTEX Series power supplies were initially shipped with 12VHPWR cables. Following the update to the ATX standard, we began replacing these with the new 12V-2×6 connectors. During this transition period, customers may receive either 12VHPWR or 12V-2×6 cables in the box. Please note that availability may vary by region. We apologize for any inconvenience this may cause.

  • 80PLUS-Gold
    The Vertex GX ATX 3 Series achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

    80 PLUS® Gold

  • Warranty

    12 Years

  • Vertex-PX-GX-850-1000-1200-connector-plate-leveled
    Cabling

    Fully Modular

  • Vertex-PX-GX-750-vertical
    160 mm (L) x 150 mm (W) x 86 mm (H)

    Dimensions

  • ATX Specifications

    ATX 3.1 & PCIe 5.1

Cybenetics - VERTEX GX-1200
Cybenetics-efficiency-goldCybenetics-noise-a-minus
Cybenetics - VERTEX GX-1000 / 850 / 750
Cybenetics-efficiency-platinumCybenetics-noise-a

Unboxing Vertex GX-1200 (2024)


VERTEX GX



ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)

Seasonic’s latest VERTEX ATX 3 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.

12V-2×6-VERTEX

Micro Tolerance Load Regulation

Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Micro Tolerance Load RegulationIntel Specifications
Compare MTLR 01
Compare Intel 01

Digital Hybrid Fan Control

Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.

20db-sound-level
  • arcticons_sound-amplifierReduced noise without increase in temperature
  • fanExtended fan life due to the reduced number of fan rotations
  • material-symbols-light_heat-pump-balance-outlineOptimized heat dissipation at all times
  • codepenUnsurpassed silent performance in Fanless Mode

Fluid Dynamic Fan Bearing

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

fdb-fan
PSU-fan-spin-2PSU-fan-spin-1
  • When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
  • As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Specifications

1200 W
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level Gold
Cybenetics Noise Level A-
Form Factor ATX/EPS
Dimensions 160 × 150 × 86 mm
Fan Information Fan Size 135 mm
Fan Control Digital Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
Power Output
AC Input 100 V - 240 V
15 - 7.5 A
50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 100 A 0.3 A 3 A
  125 W 1200 W 3.6 W 15 W
  Total continuous power 1200 W
