DA850R Gold
80 PLUS Gold 850W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- High efficiency with 80 PLUS Gold certification
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 40℃operating temperature
- Silent running 120mm FDB fan with 18 dBA minimum
- All Japanese electrolytic capacitors
- Compact design with a 140mm depth for easy integration

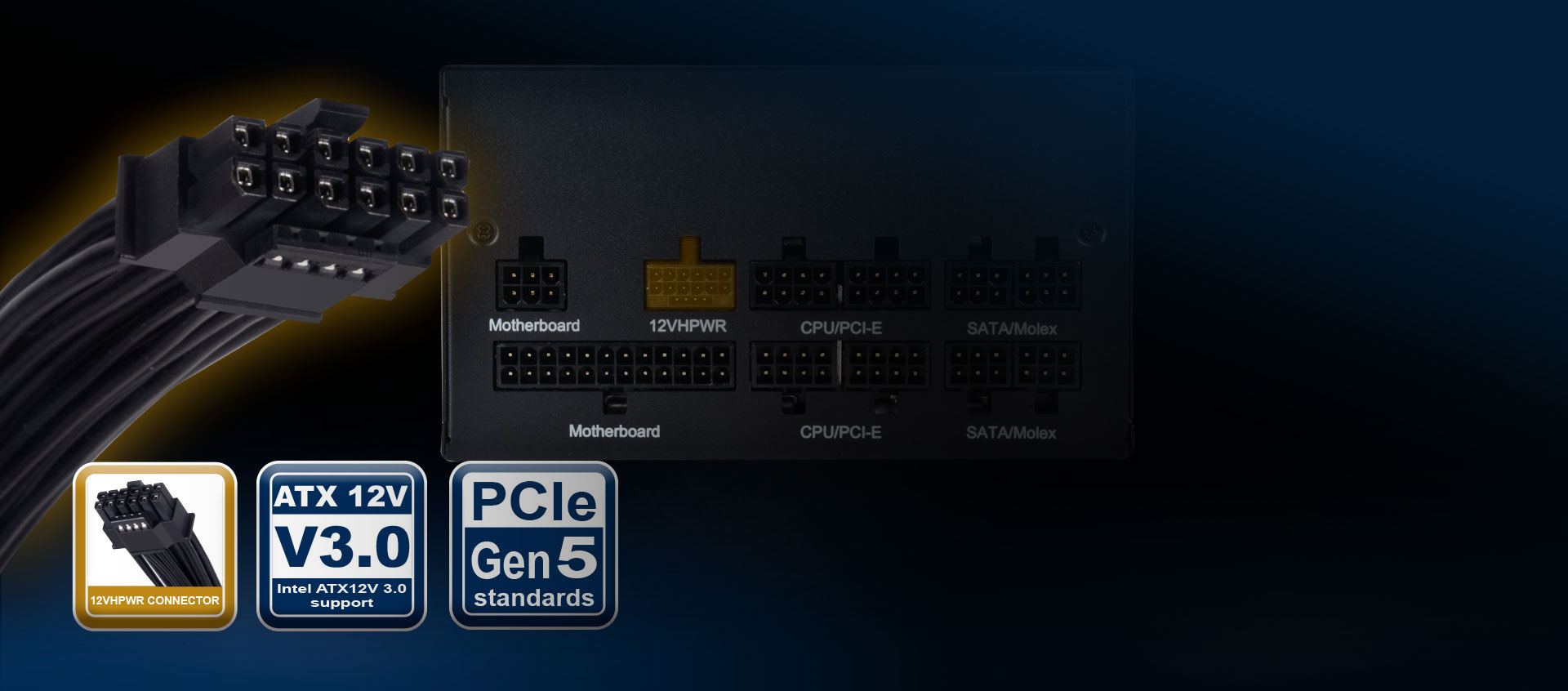

12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems

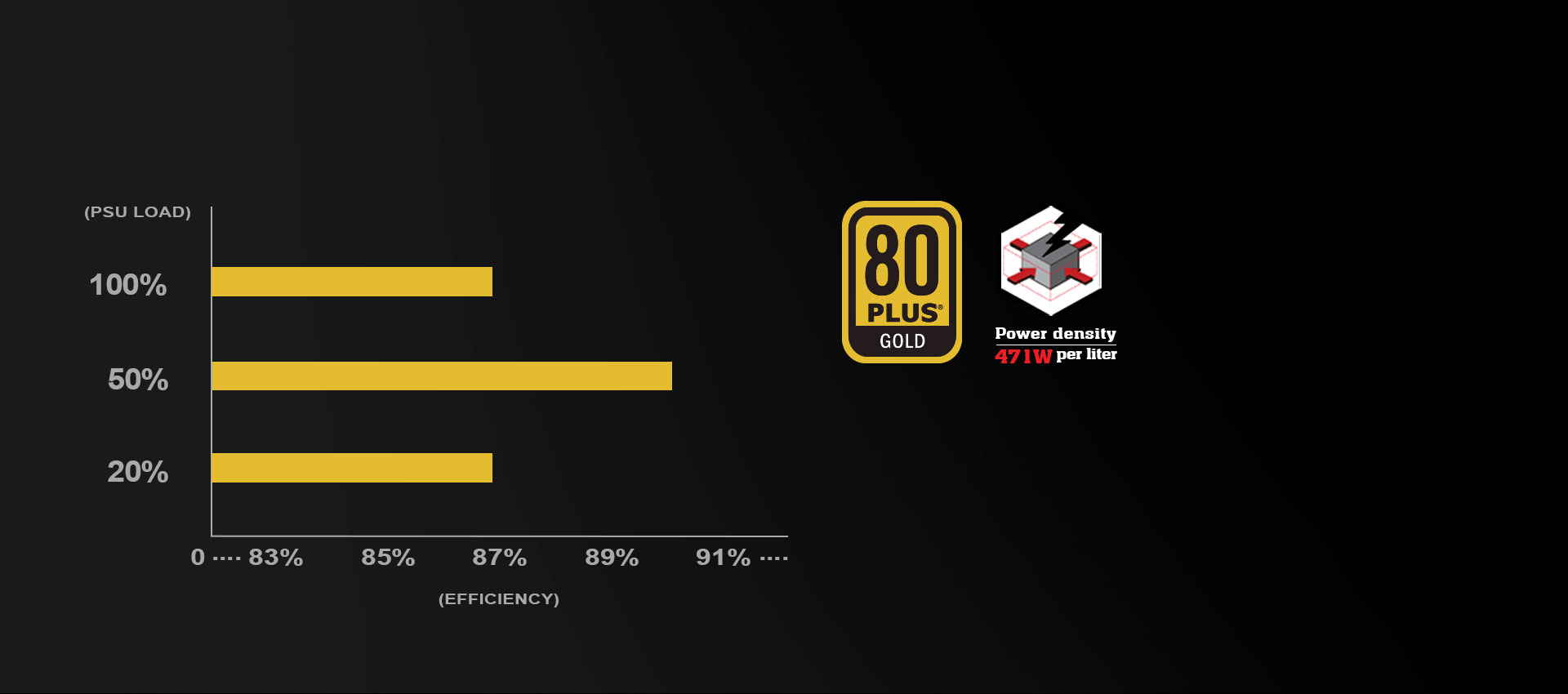

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

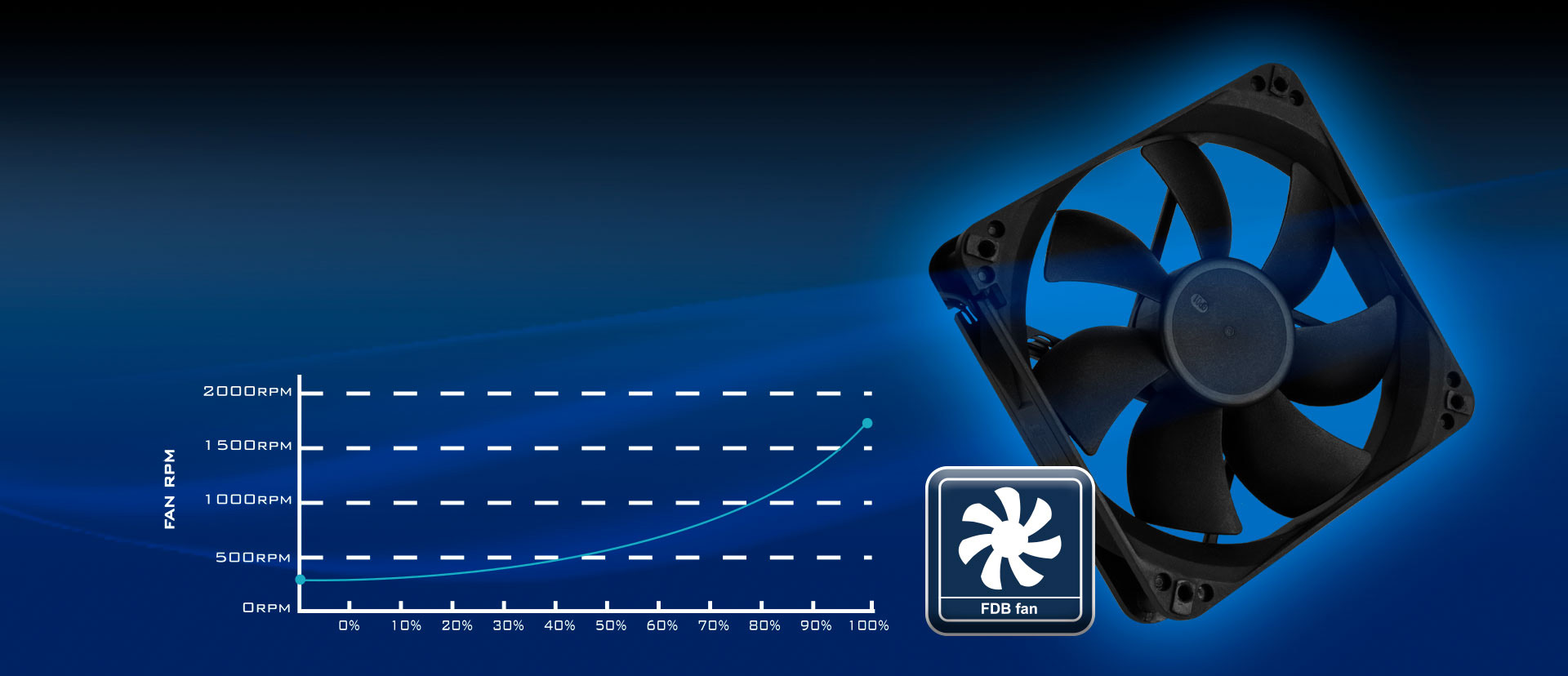

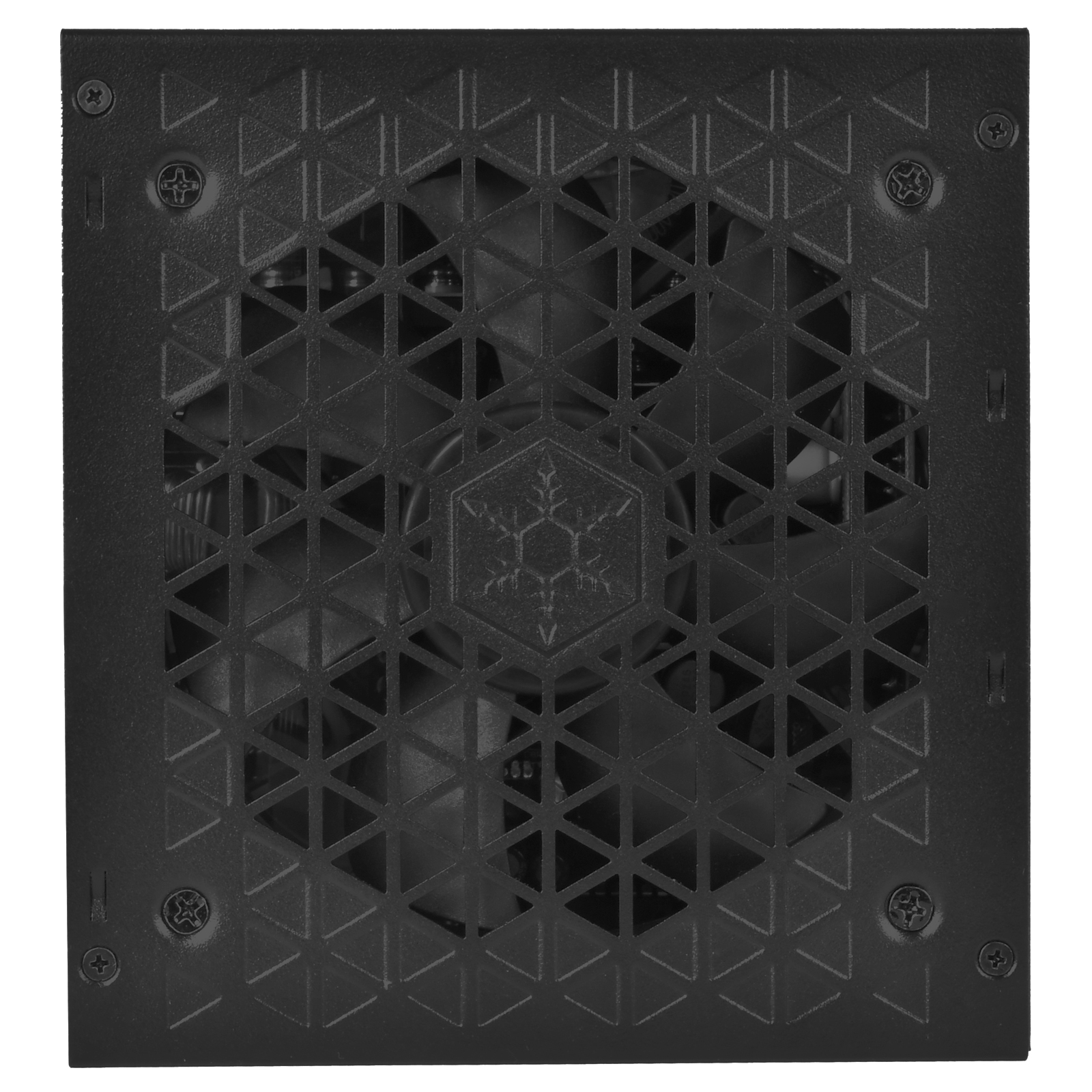

Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Japanese electrolytic capacitors

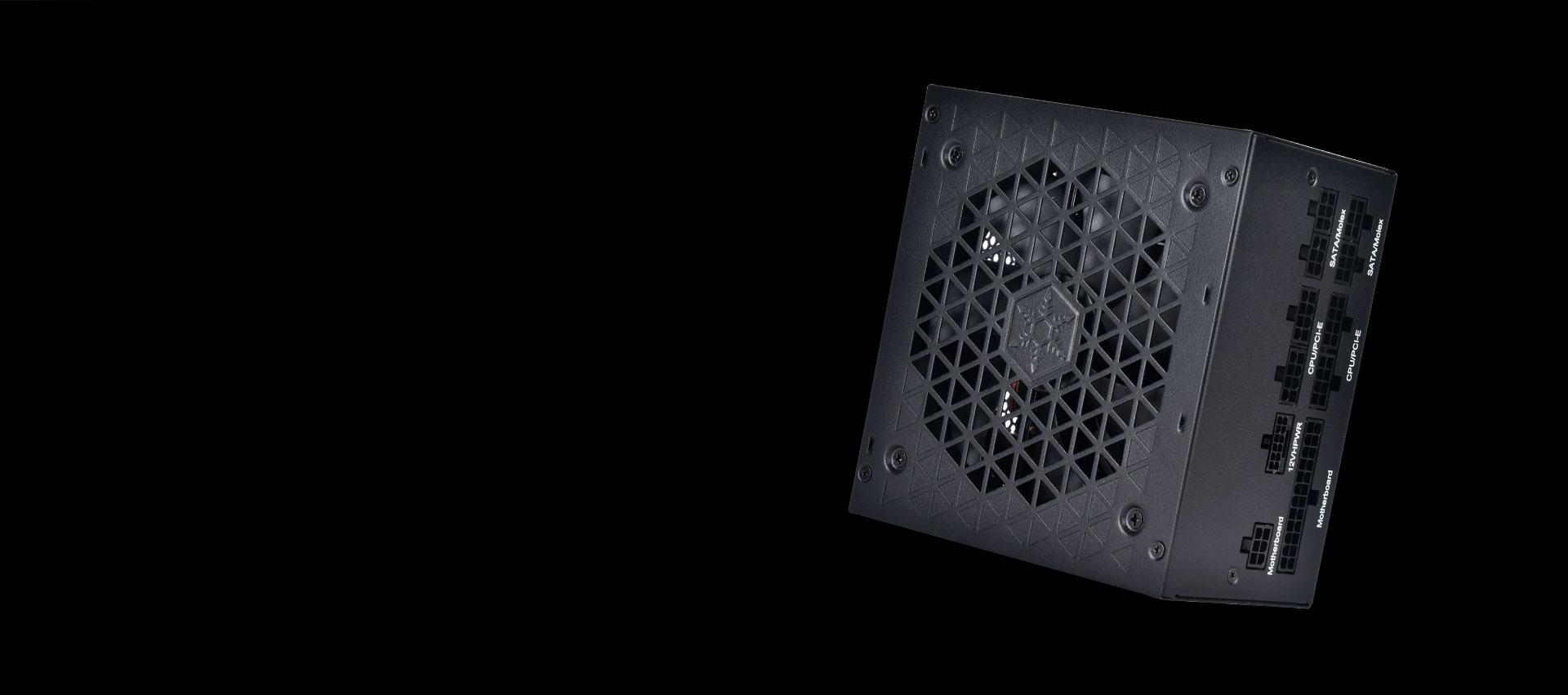

Specially designed cover designed to effectively dissipate the residual heat
Advanced protections for safety and security
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection
Product Specifications
Product No.
SST-DA850R-GM
Model (safety certification)
SST-AX0850MCGD-B
Color
Black (lead-free paint)
Max. DC Output
850W
Power density
471W/L
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 70.5A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | 3.0A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±3% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 60mV | 40mV | 80mV |
Combined +3.3V & +5V
110W
Combined +12V
846W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
No load operation
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
No load operation

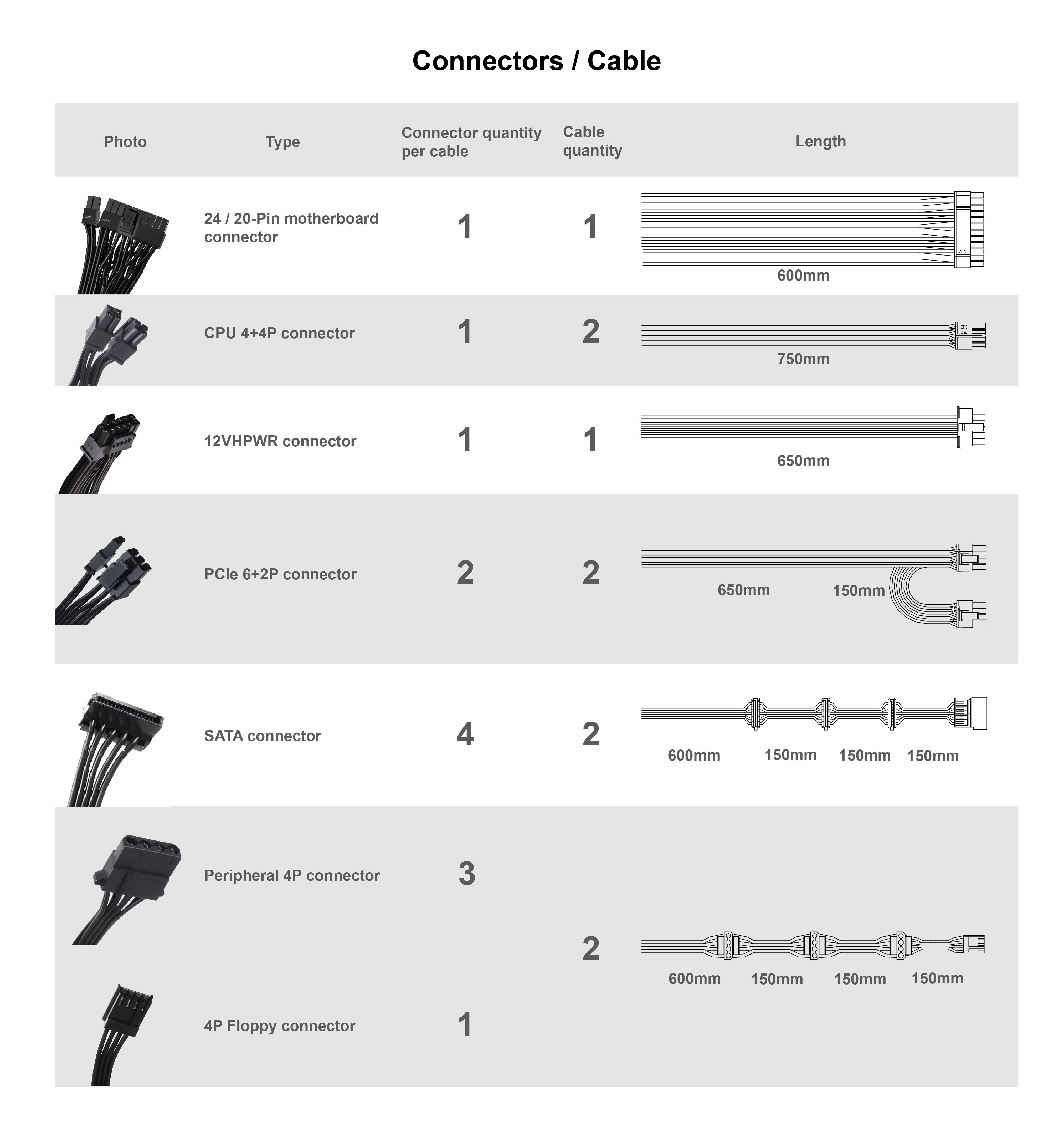

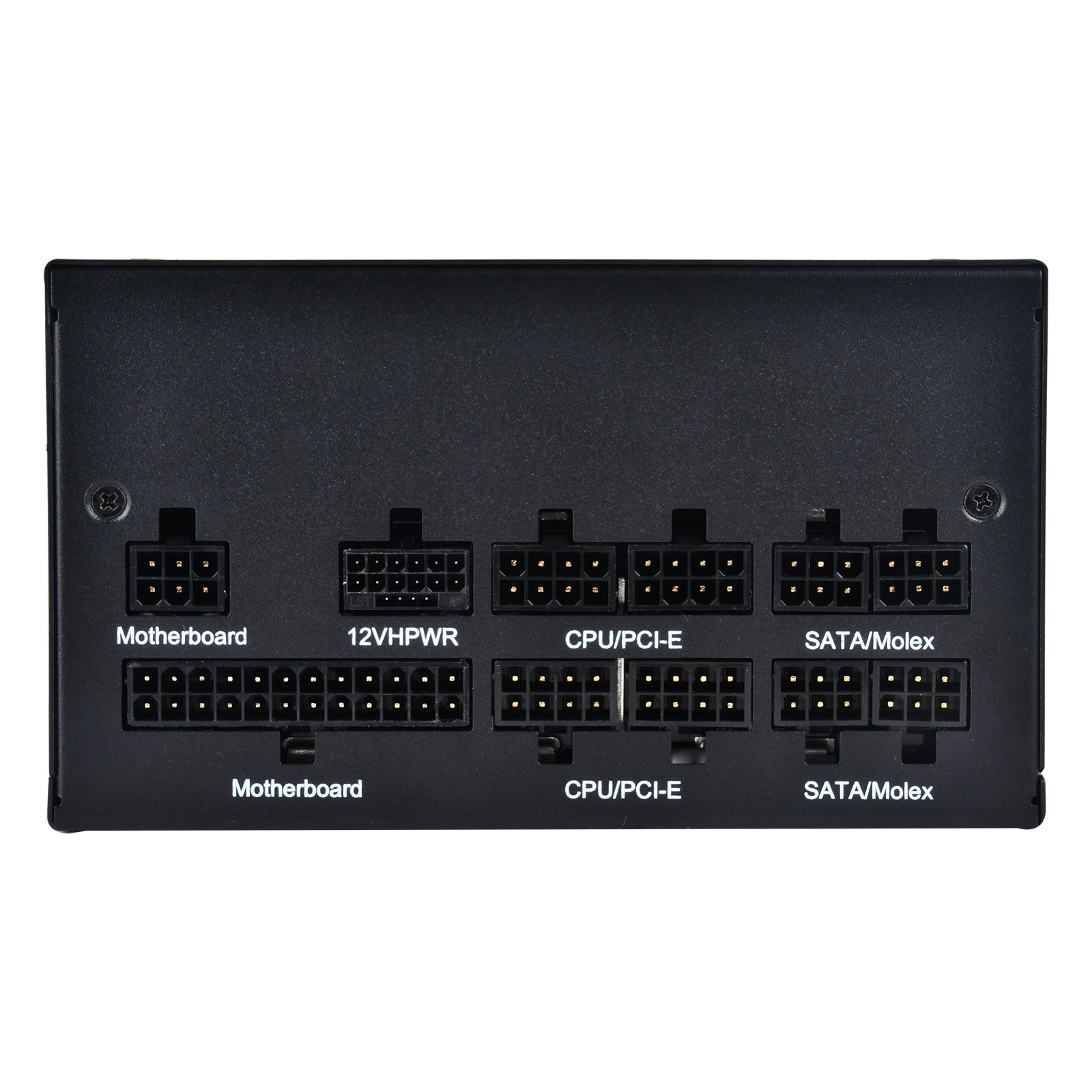

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connectors
6 x 4-Pin Peripheral connector
2 x 4-Pin Floppy connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connectors
6 x 4-Pin Peripheral connector
2 x 4-Pin Floppy connector
Cooling System
120mm FDB fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)

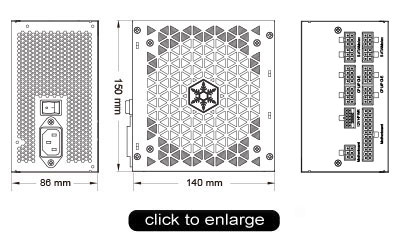

Dimension
150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.46 kg
