Product Specifications
Model No.
SST-RVZ03B (black)
SST-RVZ03W (white)
SST-RVZ03W (white)
Material
Reinforced plastic outer shell, steel body
Motherboard
Drive bay
Internal
- 2.5" x 4*

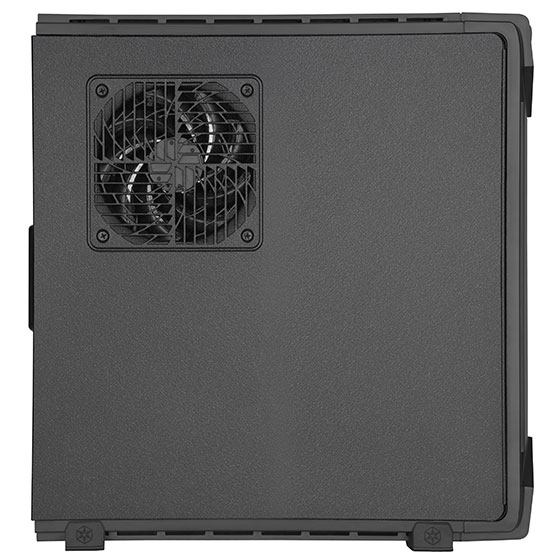

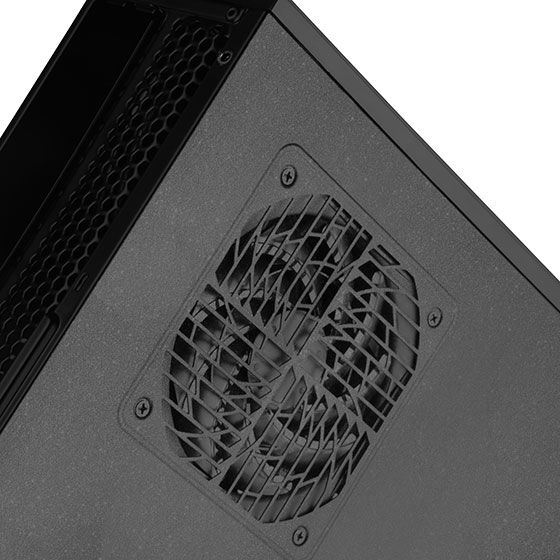

Cooling system
Top
- 1 x 120mm fan, 1500rpm, 18dBA
Bottom
- 1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan slot
Limitation of CPU cooler
83mm
Expansion slot
2
Limitation of expansion card
Compatible up to 13" (330mm) long, width restriction-5.88" (149mm)
Power supply
Optional PS2 (ATX)
Limitation of PSU
150mm**

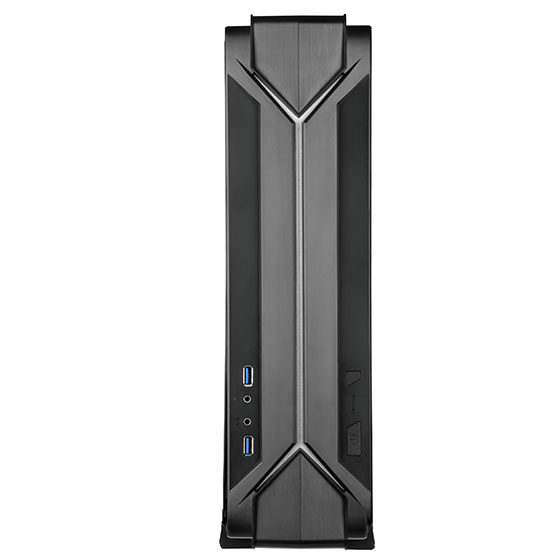

Front I/O port
USB 3.0 x 2
audio x 1
MIC x 1
audio x 1
MIC x 1
Dimension
382mm (W) x 105mm (H) x 364mm (D), 14.6 Liters
15.04" (W) x 4.13" (H) x 14.33" (D), 14.6 Liters
15.04" (W) x 4.13" (H) x 14.33" (D), 14.6 Liters
Net weight
4.05 kg
Extra

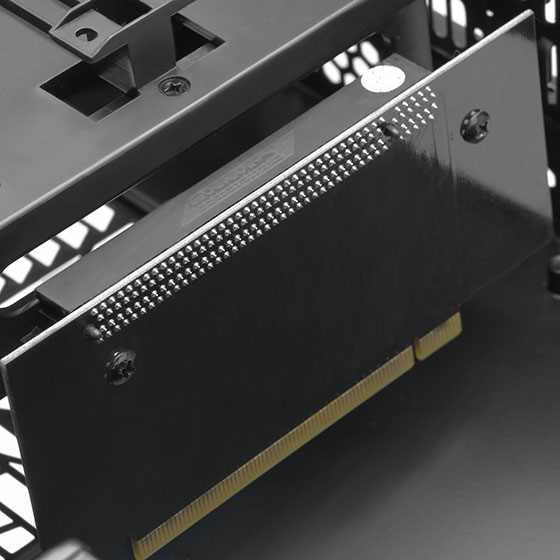

Support Kensington lock, PCI Express riser card set x 1 (V1.3)
* 2.5" drive on center bracket may be difficult or impossible to install due to power supply cable interference, we recommend using 140mm deep or shorter modular power supply with flat cables
** Maximum length for power supply is 150mm but we recommend 140mm deep power supply due to varying connector locations and the unique structure of RVZ03.Due to the use of internal power cord extension, we recommend not to exceed 800W when powering off a 110V outlet (no limit for 220V)
*** The included riser card does not support PCIe 4.0. However, you can still use it with any PCIe 4.0 supported card and motherboard by selecting to run at PCIe 3.0 setting in your motherboard BIOS/UEFI.
