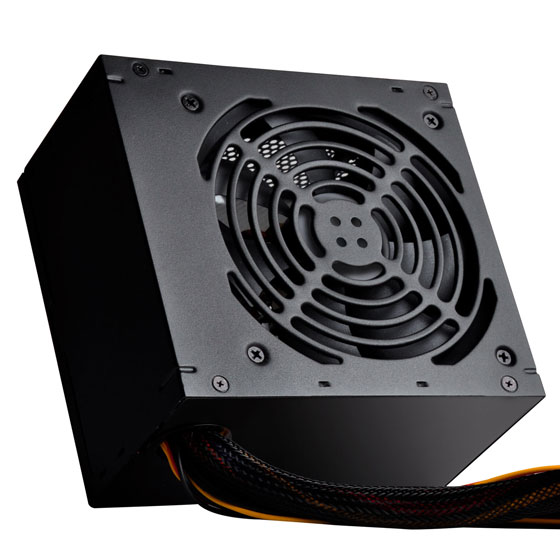

ST65F-ES230
80 PLUS 230V EU 650W ATX power supply
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- PCIe 8pin and PCIe 6pin connector support
- Silent running 120mm fan with 18dBA
- All black flat cables design
Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

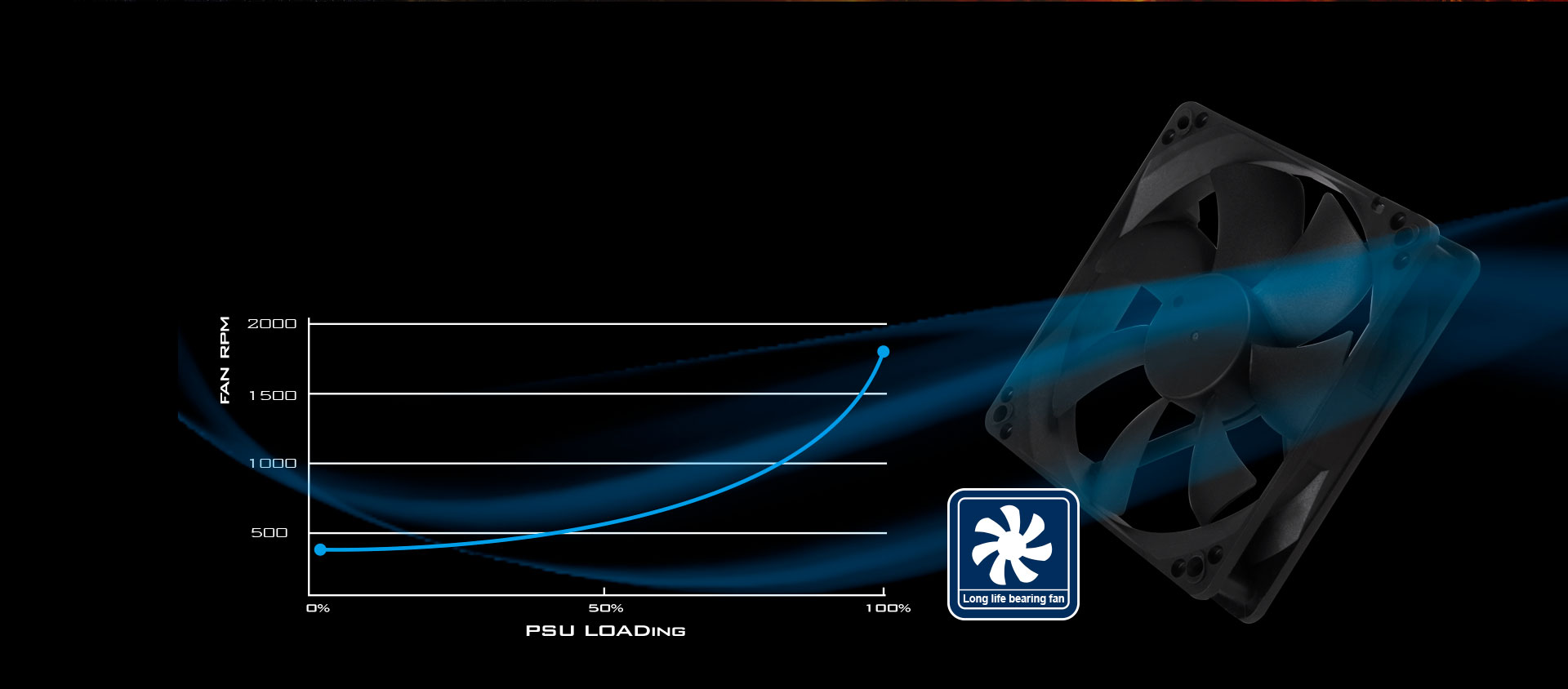

Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Product Specifications
Product No.
SST-ST65F-ES230
Color
Black（Lead-Free Paint）
Max. DC Output
650W
Power density
360W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 50A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
120W
Combined +12V
600W
Input Voltage
180V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over voltage protection
Short circuit protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8 / 6-Pin PCIe connector（"500mm / 150mm" x 2）
4 x SATA connector（"500mm / 150mm" x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8 / 6-Pin PCIe connector（"500mm / 150mm" x 2）
4 x SATA connector（"500mm / 150mm" x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）

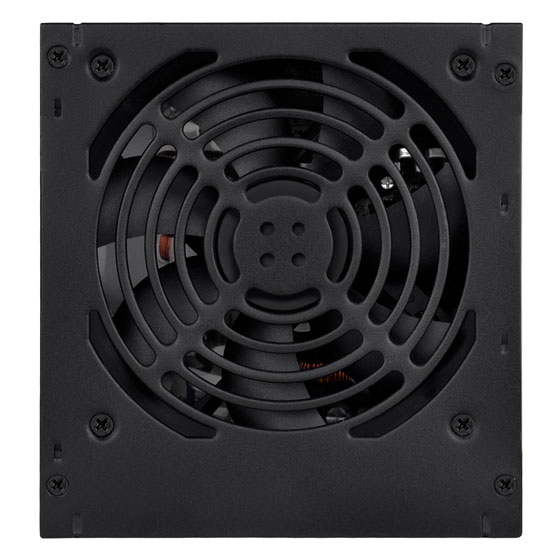

Cooling System
Single 120mm silent fan
Noise Level
18 dBA minimum
Certification
80 PLUS
Form factor
ATX

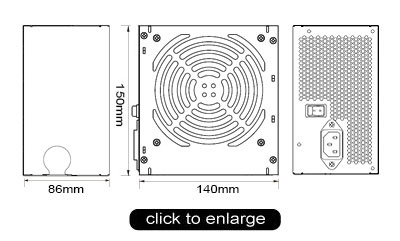

Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.42 kg
Other
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
![]()
