- Professional centralized management for Wi-Fi network

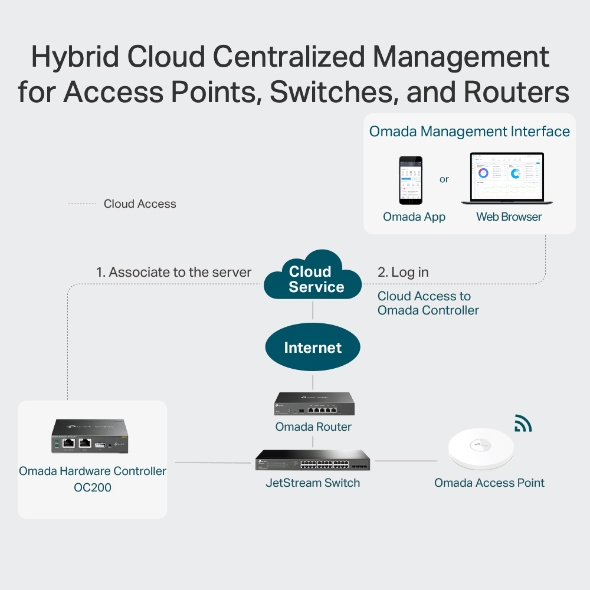

- Cloud access to manage from anywhere, anytime
- PoE (802.3af/802.3at) supported for easy installation

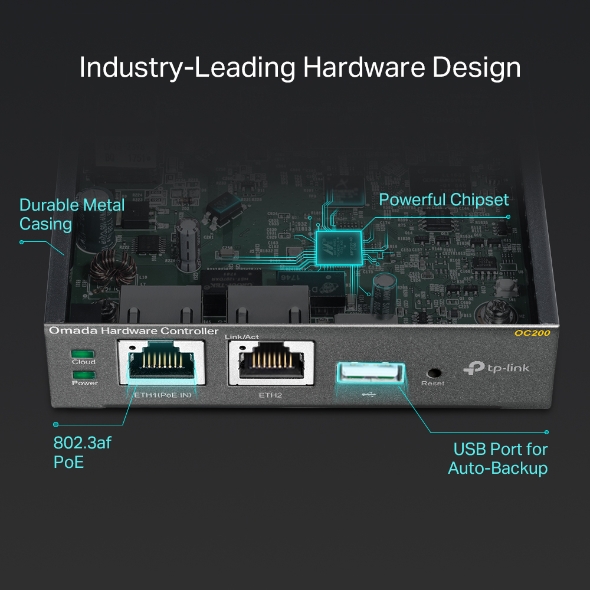

- Industry leading hardware design with the powerful chipset, durable metal casing, and USB port for auto backup
- Omada App for a convenient management
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Vourcher)
HARDWARE FEATURES | |
---|---|
Interface | 10/100Mbps Ethernet Port*2 USB 2.0 Port*1 Micro USB Port*1 |
Power Supply | 802.3af/at PoE or Micro USB(DC 5V/Minimum 1A) |
Dimensions | 3.9×3.9×1.0in. (100×98×25mm) |
FEATURES | |
---|---|
Wireless Fuction | L3 Management Multi-SSID Load Balance Band Steering Airtime Fariness Beamforming Rate Limit Wireless Schedule QoS |
Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection |
AP Management | Automatic Discovery Unified Configuration Reboot Schedule Batch Firmware Upgrade LED ON/OFF |
Authentication | Captive Portal |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | • Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers • Up to 1,000 Clients Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200 |
Cloud Access | Yes |
L3 Management | Yes |
Multi-site Management | Yes |
Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | Omada Cloud Controller OC200 Quick Installation Guide Ethernet Cable |
System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
