Display
Display Type - QD-Mini LED
Resolution - 4K, 3,840 x 2,160
Viewing angle - 178°(H)/ 178°(V)
Refresh rate - 144Hz
Colour gamut - DCI-P3 94% (Typ.)
MEMC - 4K 120Hz
Supports Dolby Vision® IQ, Dolby Vision®, IMAX Enhanced, HDR10+, HLG, Filmmaker
Speaker
Stereo
Speaker2 × 12.5W
Supports Dolby Atmos®
*Dolby, Dolby Atmos®,Dolby Vision® IQ, Dolby Vision® and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
*Requires video content that supports Dolby Vision® IQ, Dolby Atmos®.
Operating System
Google TV™
*Google TV is the name of this device's software experience and a trademark of Google LLC. Google, YouTube, Chromecast built-in and YouTube Music are trademarks of Google LLC.
Platform
CPU - Quad cortex A73
GPU - Mali-G52 (2EE) MC1
RAM - 3GB
ROM - 32GB
Smart Home
Google Assistant built-in
*Google Assistant is not available in certain languages and countries. Please refer to Google Assistant official website for more info.
Chromecast built-in™
*Requires Chromecast built-in enabled apps.
Supports Miracast
Apple AirPlay
*Apple, AirPlay, iPad, iPhone are trademarks of Apple Inc., registered in the U.S. and other countries and regions. To use AirPlay with Xiaomi TV S Mini LED 75 2025, the latest version of iOS, iPadOS, or macOS is recommended.

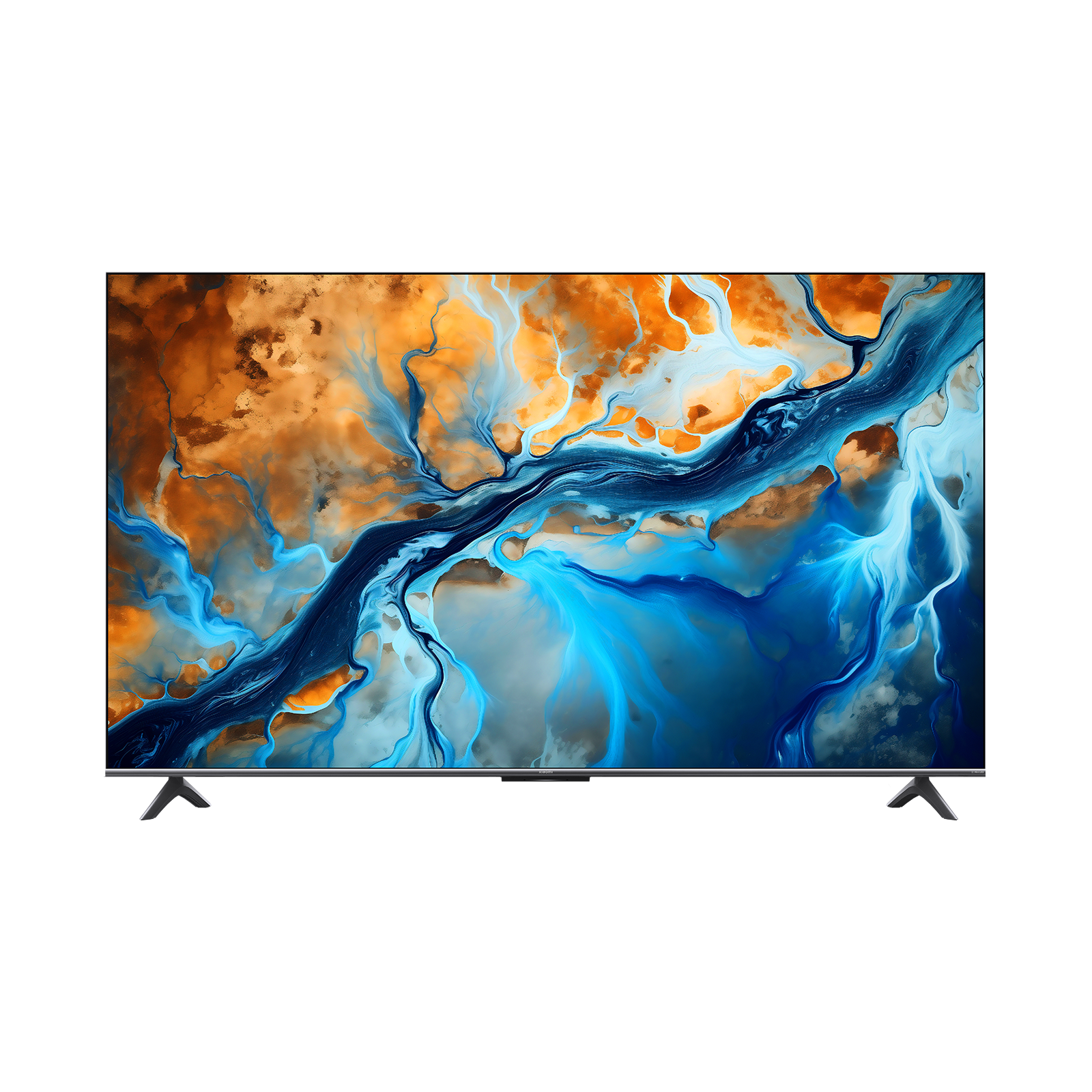

Design
Dimensions

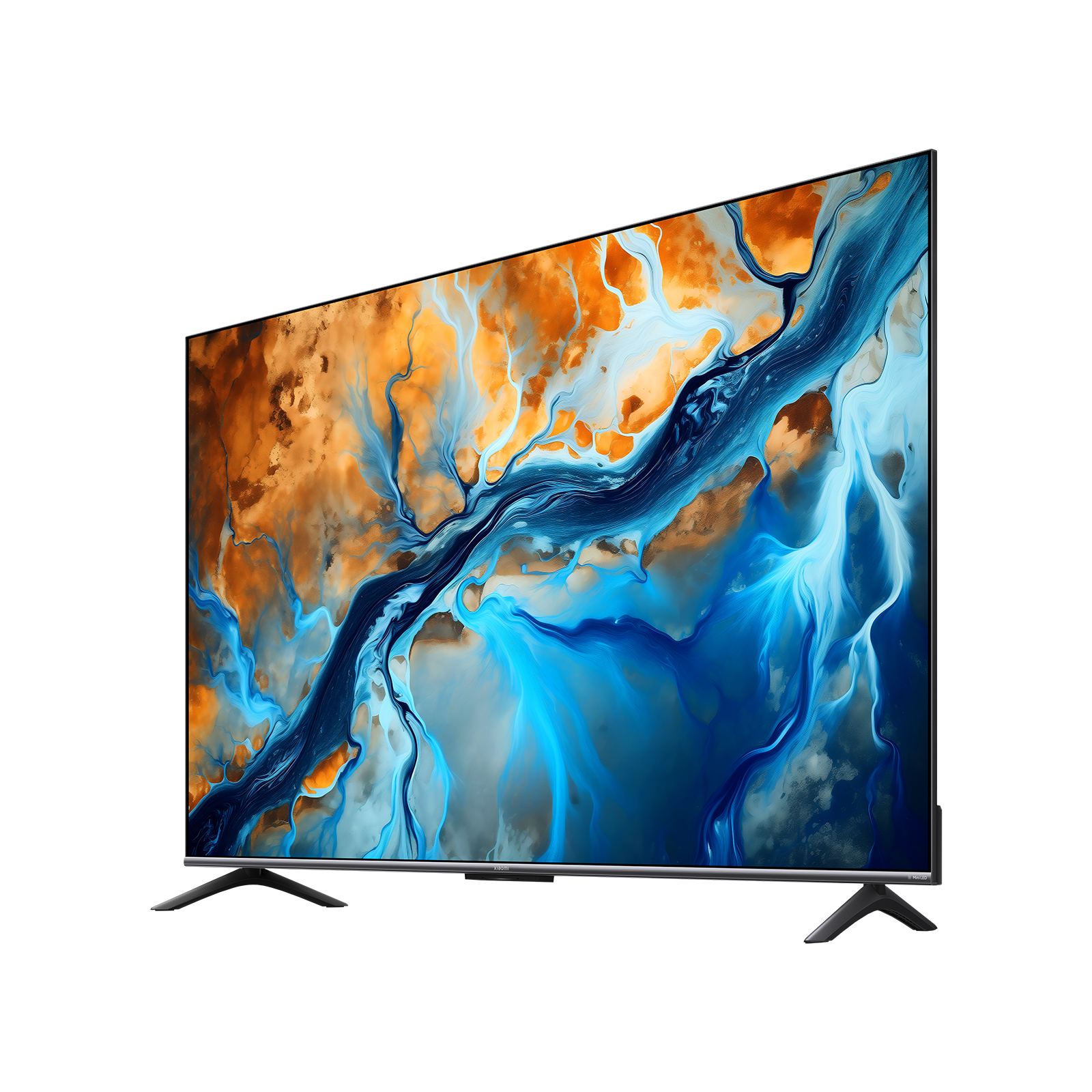

Size - 65"
Limitless display with bezel-less design
Colour - Dark Gray
Stand - Double
Power button
Dimensions including base - 1445.7 × 390 × 904mm
Dimensions not including base - 1445.7 × 84.6 × 838.2mm
Base thickness - 390mm
Wall mount dimensions - 300 x 300mm
*Packing size (L × W × H): 1641 x 175 x 980mm
*Screw diameter and length may vary depending on product model number. To prevent damage to the product, please use the wall-mount bracket provided.
Weight
Weight including baseapprox. 19kg
Weight not including baseapprox. 18.3kg
Packing weight25kg
Material
Frame - Plastic
Stand - Plastic
*Data obtained from Xiaomi Internal Labs. Actual results may vary due to differences in testing environments, methods and devices. Please refer to the actual product for accurate details.
*The above image is for reference only. Please refer to the actual product for actual appearance. The base must be placed on a horizontal surface larger than the width of the TV and be able to adequately carry its weight.
*Dimensions and weight data may vary due to differences in testing environments, methods and devices. Please refer to the actual product for accurate details.
Connectivity
Bluetooth® 5.2
Wi-FiWi-Fi 6, dual-band 2.4GHz/5GHz
HDMI 2.1 × 3, support CEC ALLM VRR HDMI 1, HDMI 2 support 4K 144Hz HDMI 2 supports eARC
USB × 2 (USB 2.0 × 1 + USB 3.0 × 1)
Ethernet (Lan)Yes
Optical Digital Audio OutYes
3.5mm headphone jackYes
CI+ SlotYes*
Broadcasting systemDVB-T2+C/DVB-S2*
*Vary by markets
Power & Operating environment
Power - 280W
Voltage200-240V～50/60Hz
*Vary by markets
Operating temperature:0°C to 40°C
Storage temperature-15°C to +45°C
Humidity - 20% to 80%
Relative humidity - <80%
Standby power - ≤0.5W
Package contents
Display × 1
Power cable × 1
Safety and installation instructions × 1
Base components × 2
Screw kit × 1
Bluetooth Remote control × 1
*Vary by markets
Stunning in every scene
QD-Mini LED
Superior contrast with 392 local dimming zones
1200 nits peak brightness
Exceptional brightness for stunning visuals
144Hz refresh rate
Ultra-smooth animations with minimal motion blur
Dolby Vision® IQ, Dolby Atmos®
Immersive audio-visual experience
AI processor
Powerful AI engine for image enhancement
We are now in the era of mini LED and it has become the obvious choice of display for those seeking high-definition picture quality. With the new generation Xiaomi TV S Mini LED boasting cutting-edge display technologies, UHD picture quality has now become widely accessible!
Exquisite picture quality and brilliant visuals
Mini LED advanced zones
Precise light control
Advanced Mini LED display technology divides the screen into 392 independent dimming zones, allowing for precise picture light control.
Compared to regular LCD TVs, this Mini LED magnifies details and reduces halo effects. It is also automatically senses changes in ambient light, delivering vivid light areas and deep darks. It recreates true-to-life imagery with captivating light and shadows.
Regular LCD TV*
Mini LED TV
1200 nits peak display brightness
Striking images
High brightness and efficient dimming of the backlight in specific zones create exceptional contrast between light and dark, delivering layers of lifelike colour contrasts. Every vivid detail is brought to life before you, from the brilliant rays of the sunrise to starry night skies.
1200 nits*
Peak display brightness
0.0001 nits*
Close to True Black OLED
12000000:1*
Dynamic contrast rate
4K 144Hz high refresh rate
High-speed refresh rate for a seamless user experience
With a 144Hz ultra-high refresh rate, say farewell to motion blur in high-speed visuals and experience accurately captured fluid details. Enjoy a seamless experience when watching films, sports, or playing games. Turn on Game Boost for an exhilarating experience with a 240Hz refresh rate.
4K 144Hz
Variable refresh rate
4K 120Hz*
MEMC*
240Hz
Game Boost*
1.07 billion colours
Faithful colour display
DCI-P3
Wide colour gamut
Standard TV
Regular colour gamut
94% DCI-P3*
Cinematic wide colour gamut
More detailed images, powerful beyond your imagination
Xiaomi TVs have gone through a decade of technological innovations in colour, contrast ratio and clarity, among other areas. Through self-developed technology, the power of the Mini LED is fully unleashed, showcasing lifelike colours, depth in light and shadow, and dynamic visuals.
Comprehensive colour engine
Accurate reproduction of nature and vibrant colours
Self-developed colour processing and a colour gamut expansion algorithm naturally map limited gamut images to the wider gamut space. With a huge colour space, colours are accurately represented and controlled, delivering an HDR experience with a comprehensive enhancement of colour and contrast, and faithfully reproducing nature's brilliant and diverse colours.

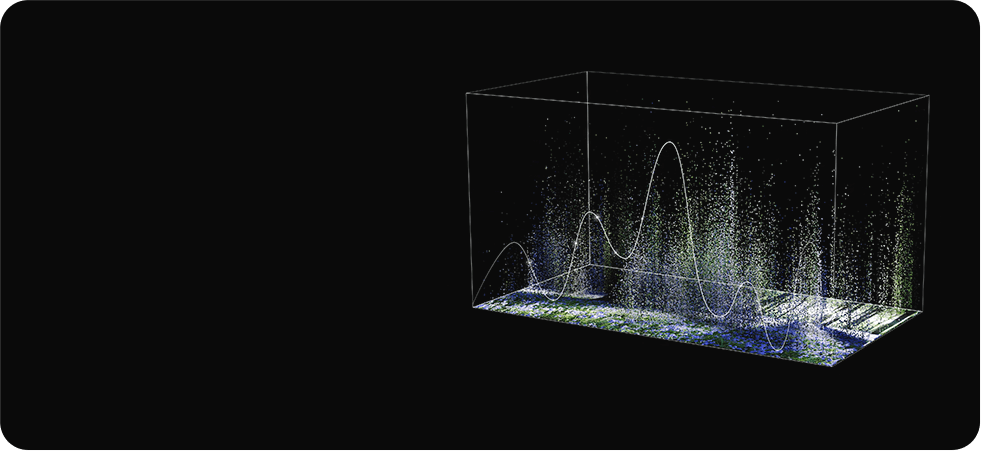

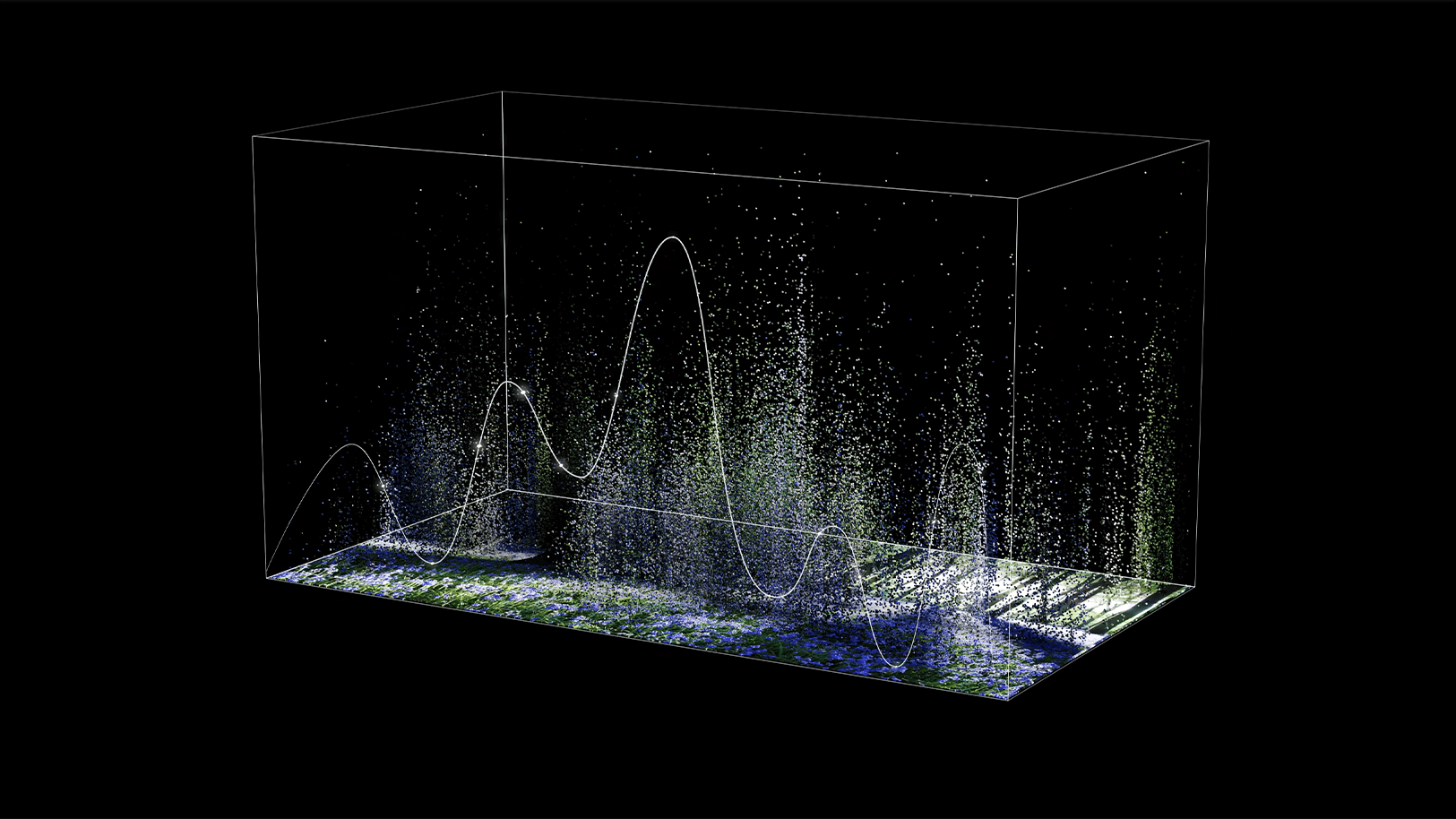

The self-developed local dimming algorithm precisely controls backlight dimming to enhance peak brightness. A backlight system manages 392 dimming zones, recalculating brightness values for each zone frame by frame, enhancing contrast and shadow details, and thereby greatly enhancing local dimming peak brightness.
Comprehensive backlight control
Control lighting and manage the balance between light and dark
Contrast enhancer
Layered visual contrast
The self-developed HDR enhancement algorithm builds on the underlying software and integrates AI technology for frame-by-frame multidimensional analysis. Fine-tune and optimise the brightness and darkness of images to deliver a 3D, clear, true-to-life, and layered UHD experience.
144Hz ultra-high refresh rate coupled with 4K 120Hz MEMC (Motion Estimation, Motion Compensation) technology enables millisecond-level frame interpolation, delivering stutter-free images during high-speed scenes. Your viewing experience is greatly improved whether you're watching a sporting event, an action film, or playing a competitive video game.
4K 120Hz MEMC
A refreshing viewing experience
Outstanding base hardware
Mini LED
Mini LED light-emitting substrate
15.37KHz + 16 bits
15.37KHz ultra-high frequency hybrid dimming with 16-bit Mini LED backlight control reduces eye strain caused by the displayProfessional algorithmic calibrationBy optimising display brightness and combining it with user experience tests to measure comfort levels, screen brightness has been corrected to accurately match ambient lighting.With a comprehensive self-developed colour engine and redesigned colour management to reduce discrepancies in colour perception.Softened colour and contrast to reduce fatigue
Audio/video entertainment for your enjoyment
Quality audio-visual experience
Immerse yourself in top-tier audio-visual entertainment
The speaker system with 4 drivers deliver powerful and immersive sounds, with a crisp treble and deep bass. Enjoy a rich audio experience, whether listening to orchestral music or film soundtracks. Include Filmmaker Mode, faithfully reproduce the creator’s intentions. Paired with Dolby Vision IQ®, Dolby Atmos®, and IMAX Enhanced, enjoy an immersive experience comparable to a theatre right in the comfort of your living room.
Arm yourself with speed
Game at maximum speed
Equipped with dual HDMI 2.1 ports, lower input latency supports smooth gameplay. VRR is also supported in the all-new Game Boost which is optimised for specifically for gaming. The TV is certified with FreeSync™ Premium, featuring an ultra-low latency of 4ms*, allowing you to showcase your gaming skills at full capacity.
VRR
Variable refresh rate
HDMI 2.1
New generation gaming port
Quad cortex A73 processors
Huge 3GB + 32GB Storage
The flagship Quad cortex A73 processor enhances image quality with AI PQ and AI SR technologies, and handles tasks swiftly and easily. Ultra-large storage space allows for the uninhibited download of large applications.
3GB + 32GB
Huge storage*
Quad cortex A73
Flagship processor
Ultra-fast Wi-Fi 6
Ultra-low latency and quick transmission
Featuring the new-generation wireless standard Wi-Fi 6 for greatly enhanced transmission speed for fast downloads of videos and instant enjoyment. With high speed and low latency, it meets high network requirements during shooting, racing, and other games.
Comprehensive ports
Meet various entertainment needs
Equipped with HDMI 2.1, USB 3.0, and wired network ports, it provides limitless expansion possibilities for gaming and films on a single screen.

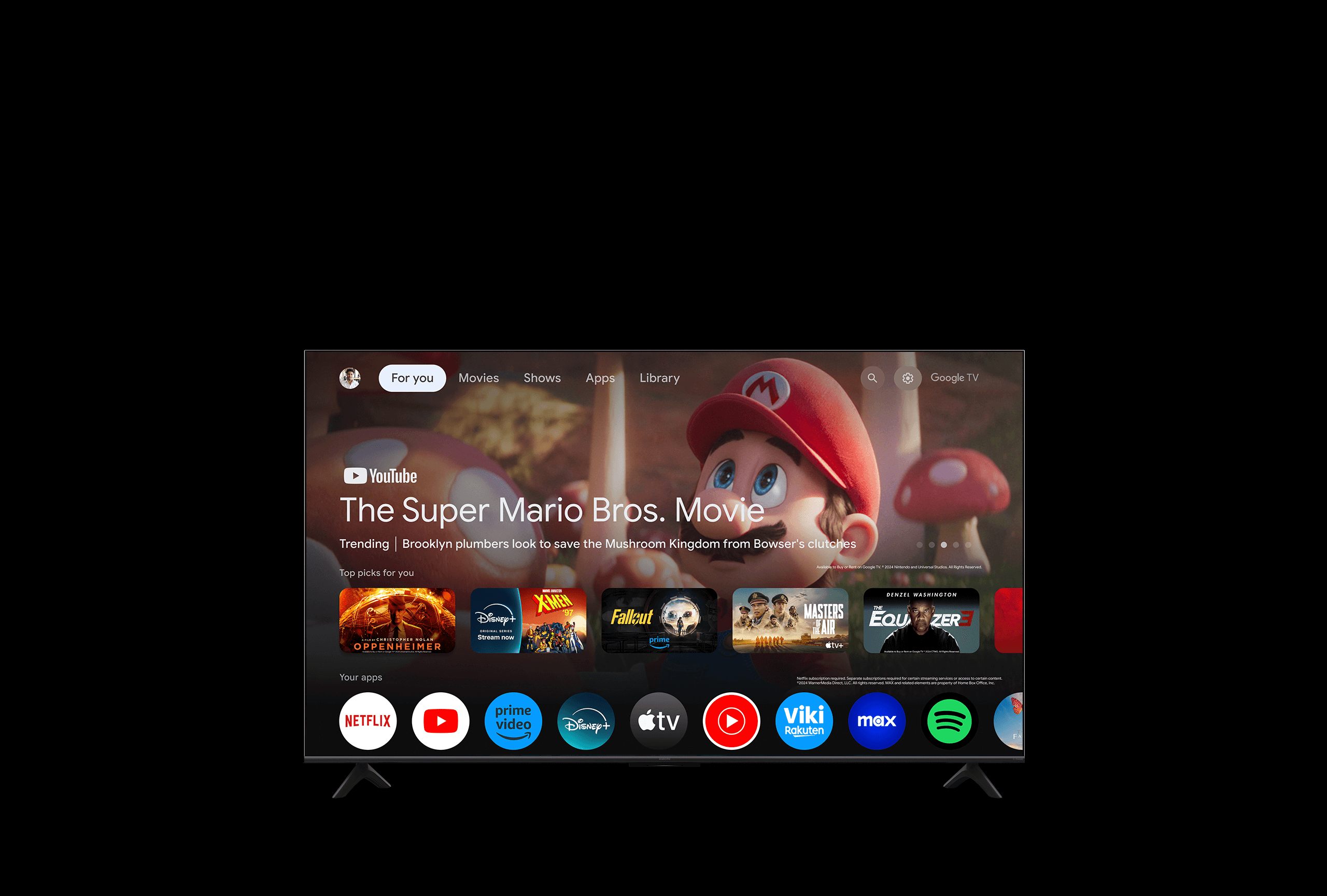

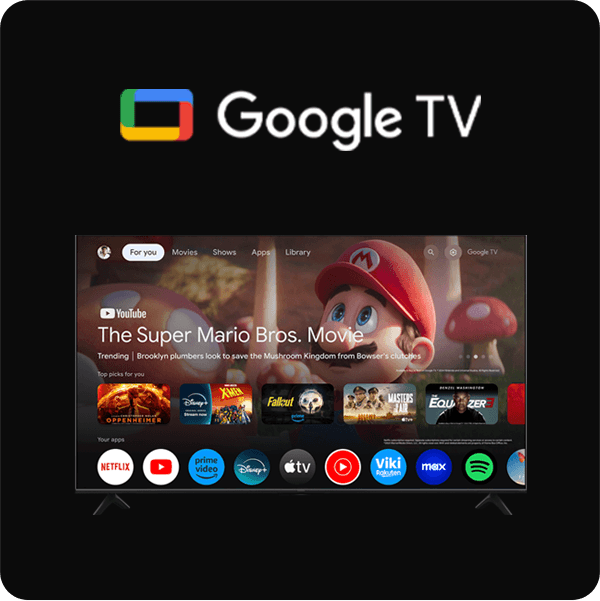

Entertainment you love. With a little help from Google.
Google TV™ brings together movies, shows, and more from across your apps and subscriptions and organizes them just for you. Need inspiration? Get curated recommendations, use Google’s powerful search to find shows across 10,000+ apps, or browse hundreds of free channels. And with personalized profiles, everyone’s experience is customized for them.

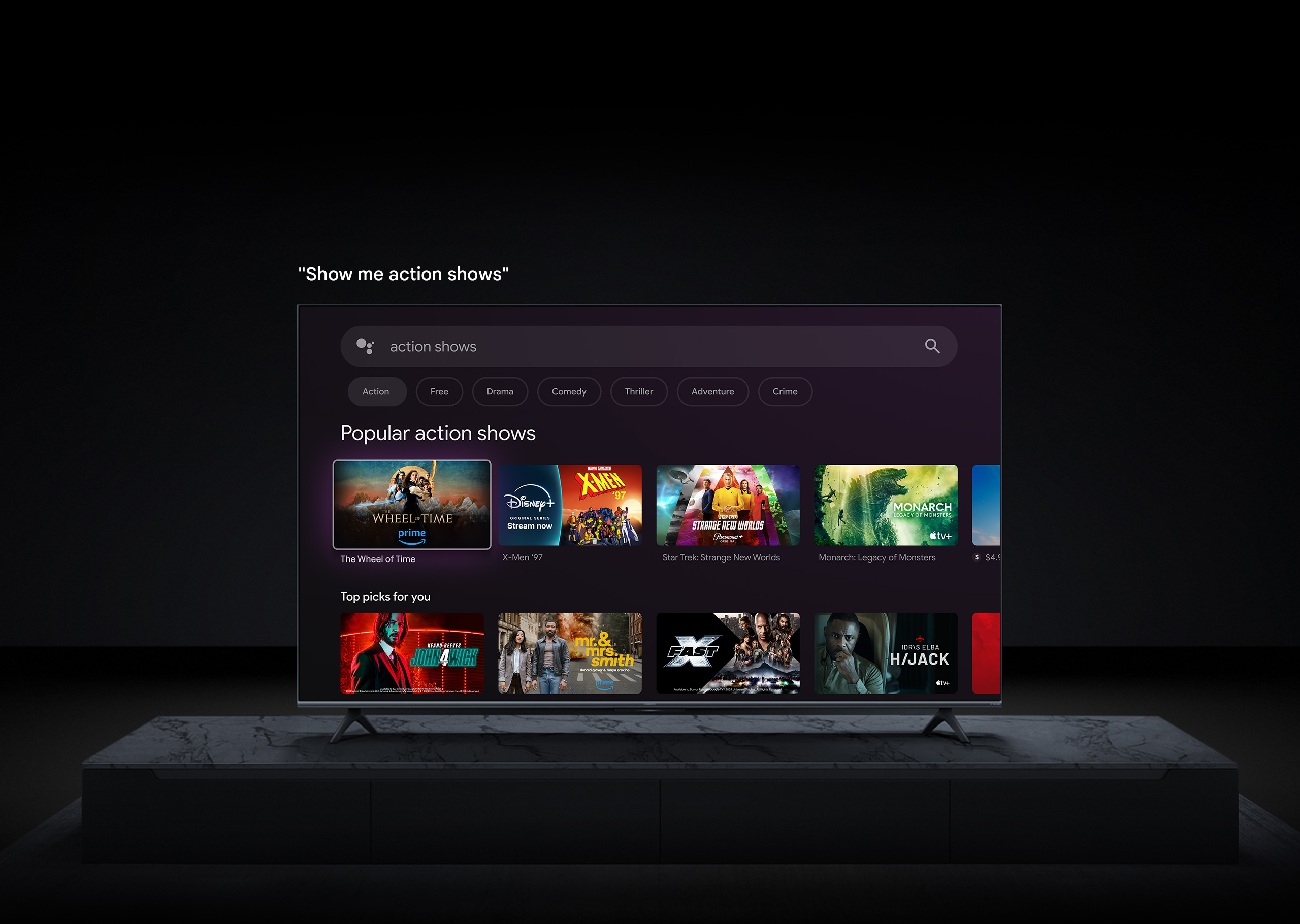

Do more on your TV with your voice.
Your TV is more helpful than ever. Ask Google Assistant to find movies, stream apps, play music, and control the TV- all with your voice. Even get answers, control smart home devices, and more. Press the Google Assistant button on the remote to get started.
Free live TV for everyone
Access a growing library of live channels of news, movies, entertainment, reality shows, and more*. Watch for free anytime, anywhere. No subscription needed.

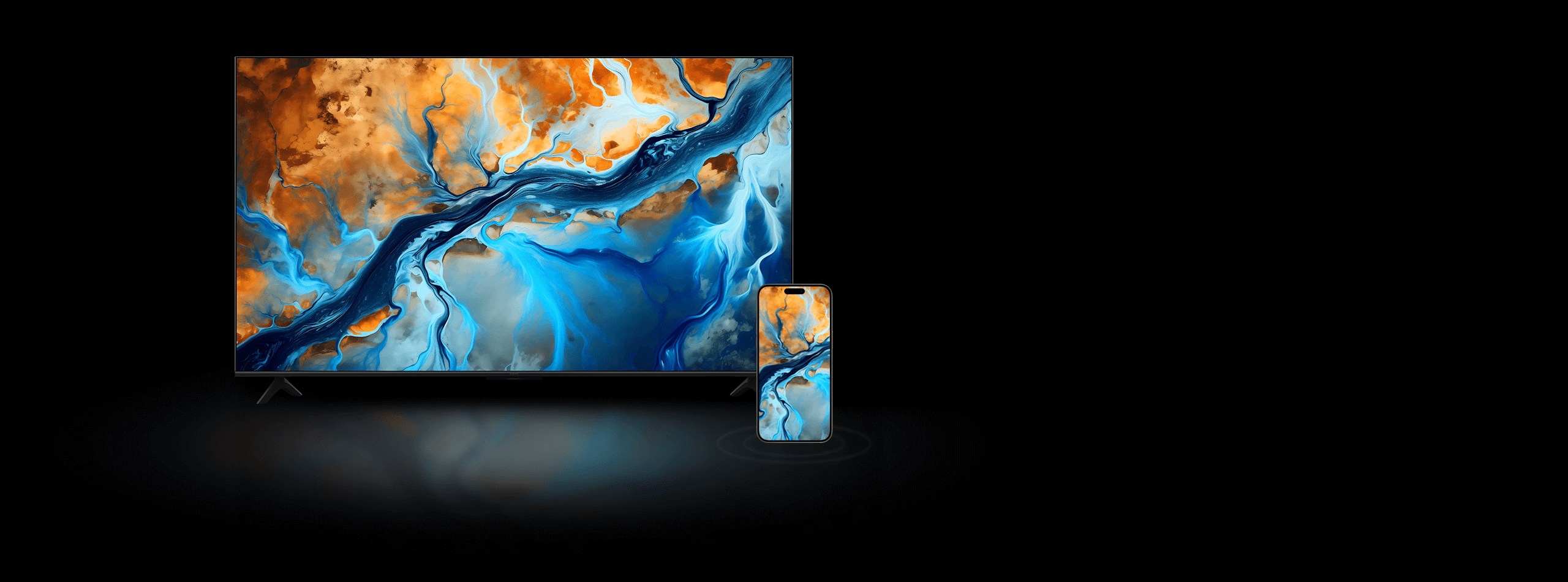

Stream from your phone
In addition to Miracast, you can easily cast movies, shows, photos, and more from your phone or tablet, right to your TV with Chromecast built-in™.
Apple AirPlay
With Apple AirPlay, you can stream movies, music, games, and photos to your television right from your iPhone, iPad, or Mac.

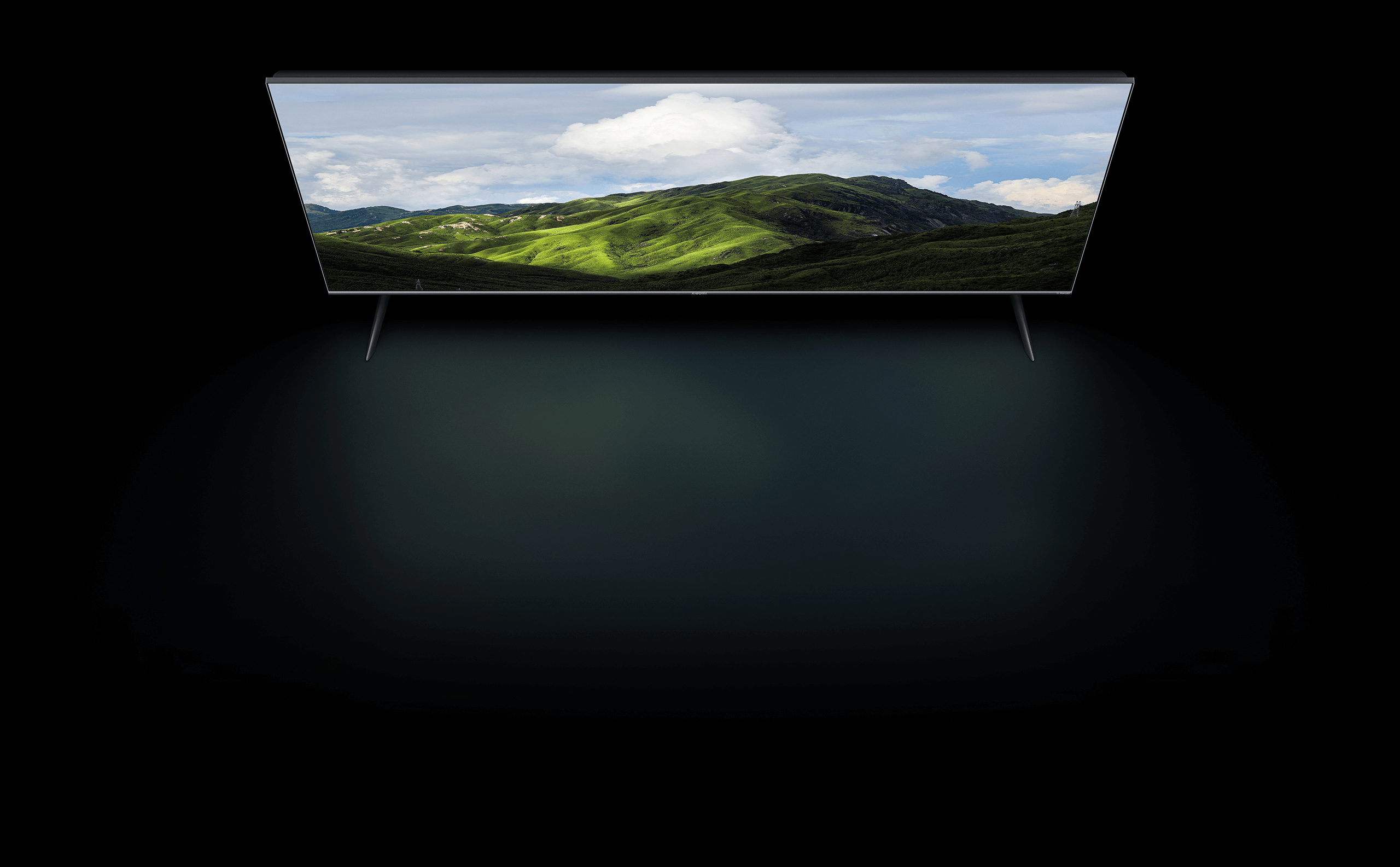

Classic design, exquisite finish
